Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TMJ-2

• Portable Celsius Series

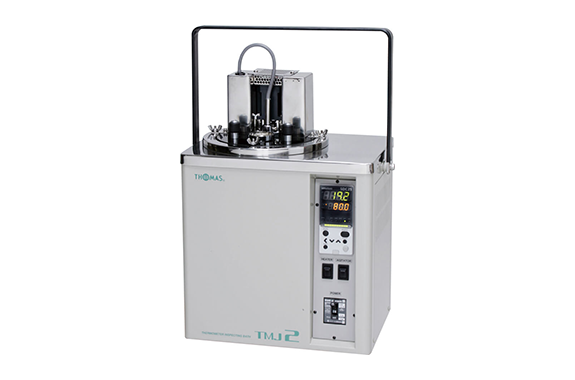

  Thermometer Inspection Tank: A portable thermometer inspection tank for managing temperatures in various locations within the factory.
• Maximum temperature of 190℃, with high temperature stability of ±0.05℃ or less.
• Heating time: 20℃ → 150℃ for 30 minutes (using 2L of silicone oil)
• By using a liquid such as silicone oil as the heating medium, a uniform and disturbance-resistant temperature environment is achieved compared to an air chamber.
• It is used in factories that comply with ISO9000 series and HACCP standards.

External dimensions	W270 x D200 x H380 (Aquarium 280 + Parts cover 100) mm
Internal dimensions of the tank	φ120×H200mm
Capacity (L)	2
Temperature range (°C)	Room temperature +10℃ 190℃
temperature stability	Within ±0.05℃
temperature control	Digital temperature indicator and controller, PID control system
Number of measurement thermometers	1 bottle
heater	Sheath type 700W
Agitator	Vertical propeller agitator type 3W motor
safety equipment	Earth leakage circuit breaker, overheating prevention alarm inside the tank.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 7.1A 50/60Hz, 2m cord with plug.
weight	8kg

llustrations
