Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-N22

Temperature Controller Unit: 110,000 + Stainless-Steel Water Tank (BM-22): 53,000

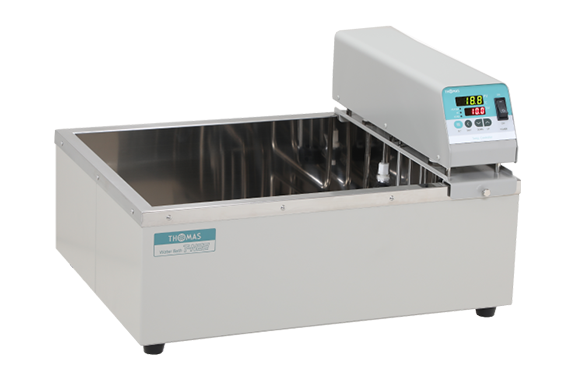

This unit-type constant-temperature water bath combines a digital temperature controller with a stainless-steel water tank. In addition, the insulated stainless-steel construction provides excellent heat retention and helps maintain a stable water temperature during operation. The standard stainless-steel tank has a depth of 150 mm. Moreover, users can choose the T-N22D, which offers a deeper 200 mm tank, or the compact T-N22J, which features a smaller 150 mm-deep tank.

• Temperature Control:
  The temperature controller uses PID control to maintain precise and stable temperatures. As a result, the system achieves excellent temperature stability within ±0.1°C, allowing users to perform temperature-sensitive applications with greater consistency.
• Safety Features:
  The system also includes several safety functions to support reliable operation. For example, overheat protection prevents excessive temperature rise, dry-boil protection safeguards the heater when the water level becomes too low, and built-in fuses provide additional electrical protection.
• Optional External Circulation:
  Furthermore, users can install the optional CP-22 circulation pump to circulate water outside the bath. Therefore, the system can support applications that require external temperature-controlled water circulation.
• Optional Lid and Shelf:
  When users operate the circulation pump together with a lid and shelf, they need a dedicated lid and shelf designed for the pump configuration. In addition, these dedicated accessories involve an extra cost.

Overall, this unit-type constant-temperature water bath combines precise PID temperature control, excellent heat retention, reliable safety functions, and flexible external circulation options. Therefore, users can select a suitable configuration according to their laboratory, testing, or temperature-control requirements.

External dimensions	W520×D390×H320mm
Internal dimensions of the tank	W480×D350×H150mm
Effective dimensions inside the tank	W400×D350×H150mm
Capacity (L)	20
Temperature range (°C)	Room temperature +5℃ 60℃ (Maximum +80℃, but requires a lid) Lid and shelves are not included.
temperature stability	Within ±0.1℃
temperature control	Digital temperature indicator and controller with PID control
heater	Sheathed type 1kW (500W x 2)
Agitator	Jet agitation method
safety equipment	Power fuse, overheat protection, dry-running protection.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 10A 50/60Hz, 2m cord with plug.
weight	Approximately 13 kg

Illustrations
