Manufacturer: Thomas Scientific Instruments Co., Ltd.

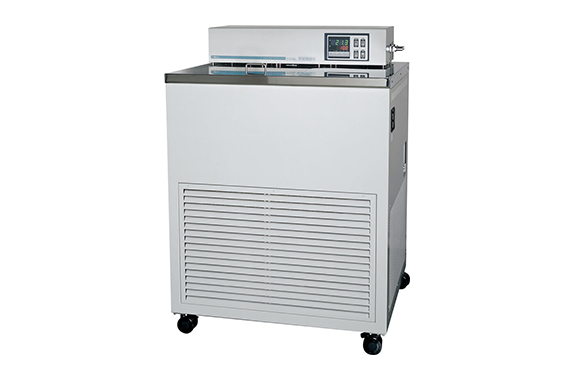

Model: TRL-1500EX

This refrigerator can operate across the entire temperature range from -5°C to +80°C, and is particularly effective for cooling heat loads in high-temperature ranges.
(Normally, our products cannot operate above +40°C to protect the refrigerator.) With a wide operating temperature range of -5°C to +80°C, high circulation capacity, and comprehensive safety features including a leakage circuit breaker, over-temperature protection alarm, and low water level alarm, you can use it with peace of mind.

Usage example

Cooling of industrial machinery, analytical and measuring instruments using external circulation of cooling water; constant temperature maintenance tests using water tanks, etc.

Specification

External dimensions	W900 x D800 x H (Aquarium 1140 + Control Unit 170) mm
Internal dimensions of the tank	W400×D500×H350mm
Effective dimensions inside the tank	W320×D260×H350mm
Capacity (L)	66
Temperature range (°C)	-5℃ 80℃
temperature stability	±1.5℃
temperature control	Digital temperature indication controller ON-OFF control method
heater	Sheathed type 3kW (1kW x 3)
Refrigeration unit	Air-cooled 1500W HFC-407C
cooling capacity	①3372W(2900kcal/h) ②4650W(4000kcal/h)
cooling capacity environment	① Water temperature +80℃ 50Hz ② Water temperature +20℃ 50Hz *These values ​​are for when the circulation pump is not used.
Agitator	Vertical propeller agitator type, 25W motor
Circulation pump	65W Magnetic Pump Maximum Head: 3m Maximum Flow Rate: 30L/min Maximum Discharge Pressure: 0.03Mpa
Circulation IN-OUT	Outer diameter φ16 hose connection (Rp 1/2)
safety equipment	Earth leakage circuit breaker, overheating prevention alarm, water level drop alarm
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of height-adjustable stainless steel shelves, one stainless steel lid.
power supply	AC200V, three-phase, 10A, 50/60Hz, 3m cord (no plug), power supply capacity 20A or more.
others	Drain port outer diameter Φ16mm
weight	Approximately 210kg
