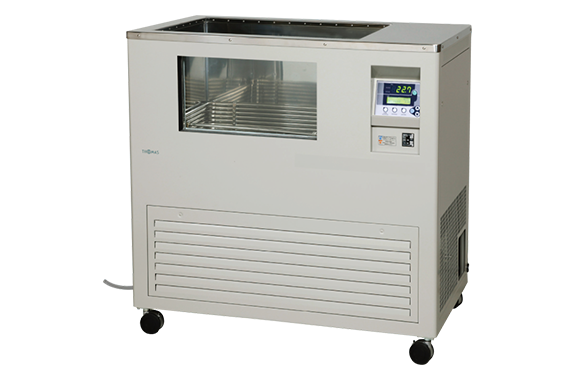

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-101FL

The approximately 90L tank capacity is effective for experiments involving large quantities of samples at once. The large observation window is also convenient for observing samples within the tank. In terms of performance, it achieves a temperature stability of ±0.1°C with high-precision temperature control.
It features a selectable auto-start/auto-stop timer (maximum 99 hours 59 minutes) .

External dimensions	W890×D510×H870mm
Internal dimensions of the tank	W600 x D400 x H400 (Effective H345) mm
Effective dimensions inside the tank	W570×D365×H345mm Window dimensions: W388×H198mm
Capacity (L)	89
Temperature range (°C)	0℃ 50℃
temperature stability	Within ±0.1℃
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Cartridge heater 1.5kW
Refrigeration unit	Air-cooled 300W HFC-134a
cooling capacity	640W (550kcal/h)
cooling capacity environment	Water temperature +20℃
Agitator	Jet agitation type magnetic pump
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish, with front observation window.
accessories	One set of stainless steel height-adjustable shelves.
power supply	AC100V 23A 50/60Hz　 , 3m cord (no plug), Power supply capacity 30A or more.
others	Drain opening outer diameter Φ16mm
weight	Approximately 102 kg

llustrations
