Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-105

• High-precision constant-temperature water bath with temperature stability of ±0.01℃ (at 40℃)
• A simple temperature controller with 1/100℃ setting and display.
• Large window for convenient observation of the inside of the tank
• Equipped with various safety functions such as overheat and low water level alarms.
• Selectable timer function with auto-stop and auto-start
  (maximum 99 hours 59 minutes)

Usage example

With its wide double-sided windows, ample internal space, and high-precision temperature stability, it is used for various temperature tests, different cultures, kinematic viscosity tests, and thermometer inspections.

Specification

External dimensions	W640×D425×H370mm
Internal dimensions of the tank	W470×D350×H300mm
Effective dimensions inside the tank	W470 x D350 x H240mm Window dimensions W393 x H218mm (both sides)
Capacity (L)	44
Temperature range (°C)	Room temperature +5℃ 80℃ *When using the lid, temperature control to room temperature + 5°C is not possible. (However, a lid is required on the open part of the tank at temperatures above +70°C.) The lid is optional.
temperature distribution	±0.02℃ (at 40℃) ±0.03℃ (when using the lid at 60℃)
temperature stability	±0.01℃ (at 40℃) ±0.02℃ or less (when using the 60℃ lid)
temperature control	Digital temperature indicator and controller, PID control system, 1/100°C temperature display and setting.
timer	1 minute to 99 hours 59 minutes: Auto start timer or auto stop timer
heater	Sheath type 1.4kW
Agitator	Magnetic pump jet agitation system
safety equipment	Leakage circuit breaker, self-diagnostic function (prevention of overheating of tank temperature, heater disconnection, low water level, temperature sensor malfunction, triac short circuit)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel height-adjustable shelf board (1 set)
power supply	AC100V 15A 50/60Hz, 2m cord with plug
others	Drain opening outer diameter Φ12mm
weight	Approximately 26kg

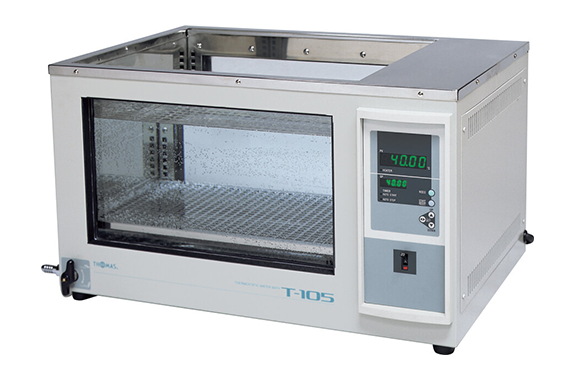

Illustrations
