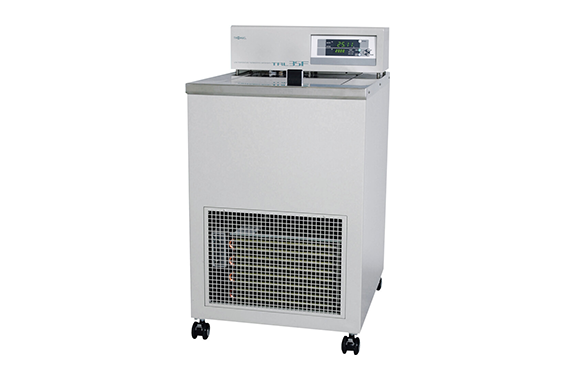

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-35F

This refrigerator utilizes HFC-404A refrigerant, which has excellent low-temperature characteristics, allowing it to perform optimally at temperatures below 0°C. It boasts superior low-temperature performance, cooling down to -35°C. The wide opening of the chamber makes it suitable for a variety of low-temperature experiments.

• You can freely control the temperature within a wide temperature range of -35℃ to +50℃. The temperature controller is an easy-to-use digital type. It uses a PID control system and allows for high-precision temperature control with 1/100℃ temperature setting and display.
• Timer operation is selectable. It features a selectable auto-start/auto-stop timer. (Maximum 99 hours 59 minutes)

External dimensions	W500 x D600 x H (Aquarium 750 + Control Unit 150) mm
Internal dimensions of the tank	W300×D400×H200mm
Effective dimensions inside the tank	W260×D270×H200mm
Capacity (L)	twenty two
Temperature range (°C)	-35℃ 50℃
temperature stability	±0.05℃
temperature control	Digital temperature indicator and controller, PID control system, 1/100°C temperature setting and display.
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Sheath type 1.2kW
Refrigeration unit	Air-cooled 400W HFC-404A
cooling capacity	209W (180kcal/h)
cooling capacity environment	Water temperature +20℃ 50Hz
Agitator	Vertical propeller agitator type 22W motor
safety equipment	Leakage circuit breaker, self-diagnostic function (prevention of overheating of tank temperature, low water level alarm, temperature sensor malfunction, refrigerator protection circuit)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of height-adjustable stainless steel shelves, one PVC lid.
power supply	AC100V 20A 50/60Hz, 3m cord (no plug), Power supply capacity 30A or more.
others	Drain opening outer diameter Φ16mm
weight	Approximately 66 kg
