Manufacturer: Thomas Scientific Instruments Co., Ltd.

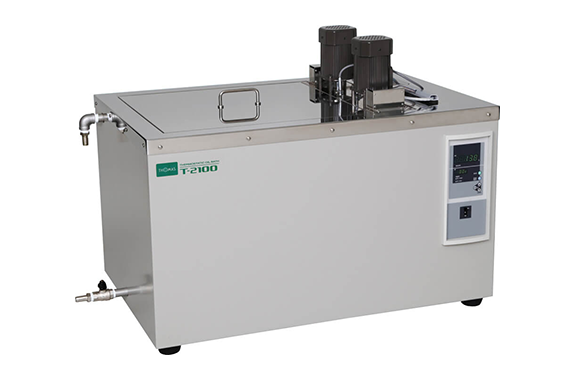

Model: T-2100

This large-capacity constant-temperature oil bath boasts a 105L capacity and ample usable space, making it suitable for various material tests and indirect heating for constant temperature applications using containers.
Equipped with a 4kW heater, it offers high heating power, reaching a maximum temperature of +200°C.
A powerful stirring motor allows it to handle even highly viscous oils (MAX 100 mm²/s).

• High temperature stability (±0.1℃) due to PID control and two powerful stirring motors.
• Equipped with various safety features such as overheat protection, dry-boil protection, and liquid level drop alarm.
• Timer operation is available.
  Selectable auto-stop/auto-start timer (maximum 99 hours 59 minutes)

External dimensions	W900 x D590 x H700mm (530mm to the top)
Internal dimensions of the tank	W610×D450×H420mm
Effective dimensions inside the tank	W500×D450×H420mm
Capacity (L)	105
Temperature range (°C)	Room temperature +10℃ 200℃
temperature stability	±0.1℃
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto start timer or auto stop timer: Maximum 99 hours 59 minutes
heater	Sheath type 4kW
Agitator	Vertical propeller agitator type, 90W motor x 2
safety equipment	Leakage circuit breaker, self-diagnostic function (overheating of tank temperature, heater disconnection, temperature sensor malfunction, low liquid level, triac short circuit)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel shelf board, stainless steel lid
power supply	AC200V single phase 22A 50/60Hz, 3m cord without plug, power supply capacity 30A or more.
others	Drain opening outer diameter Φ16mm
weight	102kg
