Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-107SLCII

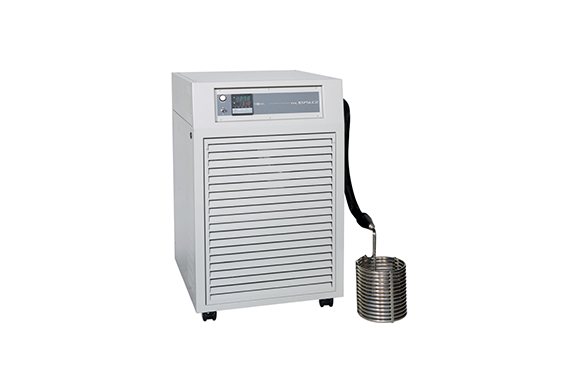

• High-power type of the TRL-107SL series
• An ultra-low temperature cooler capable of cooling down to -80℃.
• The cooling coil has a cylindrical, space-saving design (copper-plated tube).
• This product has a built-in temperature controller, but there is also a model called “TRL-107SLⅡ” which does not have a temperature controller.
• *We also accept orders for custom-shaped coils.
  They can also be incorporated into equipment as cooling units.
• *Glycol-based antifreezes such as Aurora Blain cannot be used at temperatures below -20°C (due to solidification around the cooling coil).
• *This product will be adjusted to match your power frequency. Please specify either 50Hz or 60Hz when placing your order.
• *We can accommodate special specifications such as changes to the material and shape of the cooling coil, so please feel free to contact us.

External dimensions	W530×D600×H825mm
Temperature range (°C)	-80℃ -10℃ (Recommended operating temperature)
temperature control	Digital temperature indication controller ON-OFF control method (±1℃)
Refrigeration unit	Air cooling type 1100W + 750W dual refrigeration method
cooling capacity	325W (280kcal/h)
cooling capacity environment	Liquid temperature -60℃ 50Hz
refrigerant	HFC-404A, HFC-23
Cooling coil	φ175×H180mm spiral type (copper pipe plated finish)
power supply	AC200V Three-phase 8A 50/60Hz　 Plugless 3m cord Power supply capacity 20A or more *Although it is compatible with both 50Hz and 60Hz, we ship it after adjusting it to be optimal for each respective region. When ordering, please let us know the region where you will be using the product.
weight	Approximately 120kg

Performance graph

Illustrations
