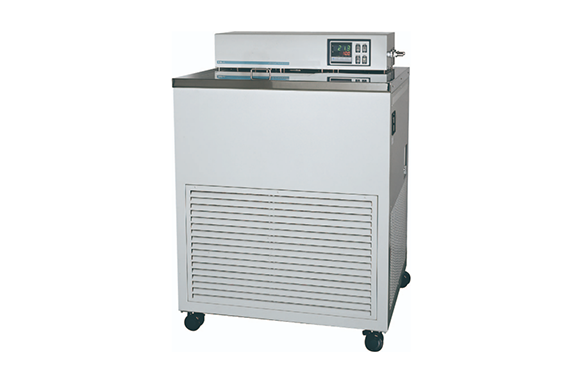

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-1500L

The TRL-1500L can be used in a temperature range from -35°C to room temperature.
A separate model, the TRL-1500H, is also available, for temperatures from -5°C to room temperature. Both models have powerful circulation capabilities and are effective for cooling through circulation. (The refrigerator cannot operate above +40°C due to a protection circuit.)

Usage example

Cooling of industrial machinery, analytical and measuring instruments using external circulation of cooling water; constant temperature maintenance tests using water tanks, etc.

Specification

External dimensions	W900 x D800 x H (Aquarium 1140 + Control Unit 170) mm
Internal dimensions of the tank	W400×D500×H350mm
Effective dimensions inside the tank	W350×D275×H350mm
Capacity (L)	66
Temperature range (°C)	-35℃ room temperature
temperature stability	±1.5℃
temperature control	Digital temperature indication controller ON-OFF control method
Refrigeration unit	Air-cooled 1500W HFC-404A
cooling capacity	①3900W(3354kcal/h) ②1100W(950kcal/h)
cooling capacity environment	① Water temperature +20℃ 50Hz ② Liquid temperature -20℃ 50Hz *These values ​​are for when the circulation pump is not used.
Agitator	Vertical propeller agitator type, 25W motor
Circulation pump	65W Magnetic Pump Maximum Head: 3m Maximum Flow Rate: 30L/min Maximum Discharge Pressure: 0.03Mpa
Circulation IN-OUT	Outer diameter φ16 hose connection (Rp 1/2)
safety equipment	Earth leakage circuit breaker
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of height-adjustable stainless steel shelves, one stainless steel lid.
power supply	AC200V, three-phase, 9A, 50/60Hz, 3m cord (no plug), power supply capacity 20A or more.
others	Drain opening outer diameter Φ16mm
weight	Approximately 210kg
