Manufacturer: Thomas Scientific Instruments Co., Ltd.

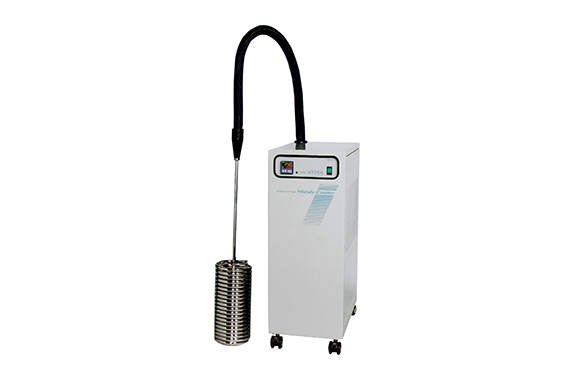

Model: TRL-107GL

• Built-in temperature controller capable of cooling down to a minimum temperature of -20℃ and a maximum capacity of 200L.
  *May vary depending on the environment and conditions of use.
• The cooling coil is a robust spiral type (copper tube with plated finish).
• Can be incorporated into equipment as a cooling unit.
• The built-in temperature controller allows for temperature control of ±1.0℃.
• We also accept custom orders for cooling coils.

External dimensions	W300×D480×H805mm
Cooling capacity	50L to 200L
Temperature range (°C)	-20℃ room temperature
temperature control	Digital temperature indicator/controller, ON-OFF control method (±1℃), temperature sensor Pt100, lead wire 2.4m, φ3.2mm, length 150mm
Refrigeration unit	Air-cooled 750W
cooling capacity	①1560W(1342kcal/h) ②970W(834kcal/h)
cooling capacity environment	① Water temperature +10℃ at 50Hz ② Liquid temperature -10℃ at 50Hz
refrigerant	HFC-404A
Cooling coil	φ155×H350mm spiral type (copper pipe plated finish)
power supply	AC200V, three-phase, 4.5A, 50/60Hz, 3m cord (no plug), power supply capacity 15A or more.
weight	Approximately 60 kg

Performance graph

Cooling Capacity Table TRL-107GL

Liquid Temperature (°C)	Cooling Capacity (W)	Cooling Capacity (kcal/h)
20	1760	1514
10	1560	1342
0	1390	1195
-10	970	834
-20	490	421

Illustrations
