Thomas Scientific Instruments Co.

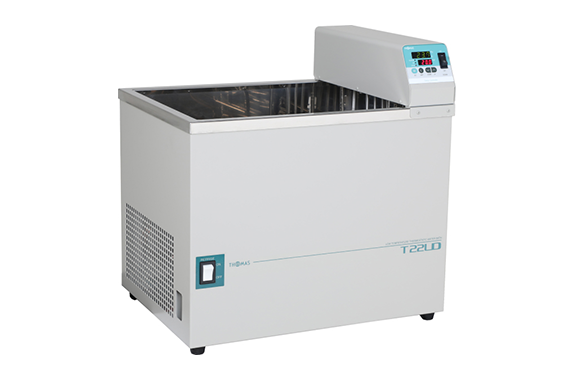

Thomas Scientific T-22LD (Non-CFC type) Low-temperature Constant-temperature Water Bath

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-22LD
- Designed with a low-profile body and a top-mounted control panel, this unit allows users to operate it easily on a tabletop. In addition, it features a 200 mm deep low-temperature constant-temperature water bath, while the 150 mm deep T-22LA model is also available for applications that require a shallower tank.
- Furthermore, users can set and monitor the temperature easily through the digital setting function and digital display. As a result, operation becomes more convenient and efficient.
- Moreover, the PID control system maintains high temperature stability within ±0.1°C, thereby ensuring precise and reliable temperature management throughout operation.
- In addition, the jet agitation system delivers quiet yet powerful agitation. Consequently, it maintains a stable temperature throughout the tank while also providing excellent mixing performance and consistent temperature control.
- For applications that require shaking as well as temperature control, the T-22LAS shaking tank is also available.
Specification
| External dimensions | W525×D395×H(Aquarium 420 + Control Unit 115) mm |
|---|---|
| Internal dimensions of the tank | W480×D350×H200mm |
| Effective dimensions inside the tank | W405×D350×H200mm |
| Capacity (L) | 29 |
| Temperature range (°C) | 0℃ 50℃ |
| temperature stability | ±0.1℃ |
| temperature control | Digital temperature indicator and controller, PID control system |
| heater | Sheath type 500W |
| Refrigeration unit | Air-cooled 130W HFO-1234yf |
| cooling capacity | 198W (170kcal/h) |
| cooling capacity environment | Water temperature +20℃ 50Hz |
| Agitator | Jet agitation method |
| safety equipment | Leakage circuit breaker, low water level alarm, and tank temperature overheat prevention. |
| Material | Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish |
| power supply | AC100V 8.5A 50/60Hz, 2m cord with plug. |
| others | Drain port outer diameter Φ12mm |
| weight | Approximately 33kg |
