Manufacturer: Thomas Scientific Instruments Co., Ltd.

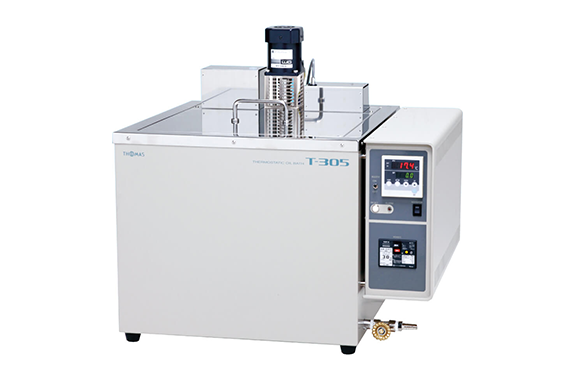

Model: T-305

This is a high-temperature constant-temperature oil bath capable of reaching a maximum temperature of +300°C.
Equipped with a 4kW heater in a 38L capacity, it maintains stable performance even at temperatures above +200°C.
A powerful agitator motor allows it to handle highly viscous oils (MAX 100 mm²/S).
A separate model, the T-301, with a 16L capacity and a 2kW heater, is also available.

•  High temperature stability due to safety device PID control
• Safety Features: Equipped with various safety functions such as over-temperature protection, sensor malfunction detection, and liquid level drop alarms for use in high-temperature ranges.
  Note: Even with silicone oil (heat-resistant type), 200°C to 300°C is a demanding operating condition.
  Above 250°C, smoke generation increases significantly, and the lifespan is shortened due to oxidation, so careful management is necessary.

External dimensions	W580×D490×H555mm
Internal dimensions of the tank	W350×D390×H300mm
Effective dimensions inside the tank	W350×D290×H265mm
Capacity (L)	38
Temperature range (°C)	Room temperature +10℃ 300℃
temperature stability	±0.05℃ (at 200℃ with silicone oil and lid)
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheath type 4kW
Agitator	Vertical propeller-type agitator 22W motor (with heat sink)
safety equipment	Leakage circuit breaker, overheat prevention in tank, sensor malfunction alarm, liquid level drop alarm.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel lid (1 piece) Stainless steel shelf (1 set)
power supply	AC200V, three-phase, 13A, 50/60Hz,　 3m cord (no plug), power supply capacity 20A or more.
others	Drain opening outer diameter Φ12mm
weight	Approximately 37kg
