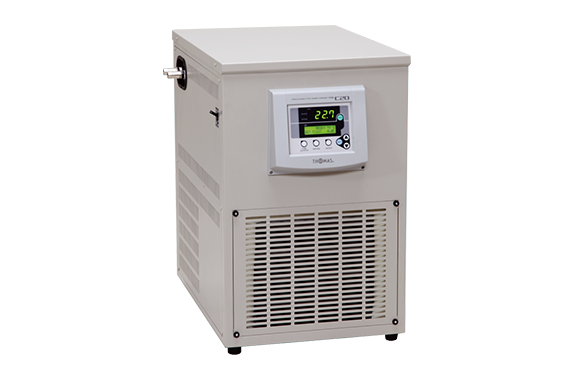

Thomas Scientific TRL-C20 Circulating Hand Cooler

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-C20

Cooling and temperature maintenance by circulation to open containers such as aquariums, flasks, beakers, trays, and ultrasonic aquariums.

Usage example

Cooling and temperature maintenance by circulation to open containers such as aquariums, flasks, beakers, trays, and ultrasonic aquariums.

External dimensions	W360×D515×H560mm
Capacity (L)	2.9
Temperature range (°C)	-10℃ 60℃ When the internal temperature of the tank exceeds 40°C, the refrigerator’s protection circuit will forcibly shut down the refrigerator. Therefore, cooling by the refrigerator is not possible when the internal temperature of the tank is between 60°C and 40°C.
temperature stability	±0.1℃ (Water at 25℃)
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto start timer, auto stop timer (maximum settable time: 99 hours 59 minutes)
heater	Sheath type 1kW
Refrigeration unit	Air-cooled 250W HFC-134a
cooling capacity	490W (420kcal/h)
cooling capacity environment	Water temperature +20℃ 50Hz
Circulation pump	20W magnetic pump, maximum head 2m, maximum flow rate 10L/min, maximum discharge pressure 0.02Mpa
Circulation IN-OUT	Outer diameter φ16 hose connector (Rp 3/8) (suitable for hoses with an inner diameter of Φ14 mm)
safety equipment	Power breaker, self-diagnostic function (overheating prevention HC, undertemperature prevention LC, flow abnormality alarm, refrigerator protection circuit, temperature sensor abnormality, refrigerator pressure abnormality, incorrect setting prevention)
power supply	AC100V 15A 50/60Hz, 2m cord with plug
others	Drain port outer diameter Φ8mm
weight	Approximately 47 kg
Price (excluding tax)	¥655,000
option	Caster installation: ¥6,000
Individual Item Catalog	Download individual product catalog (PDF)
