Manufacturer: Thomas Scientific Instruments Co., Ltd.

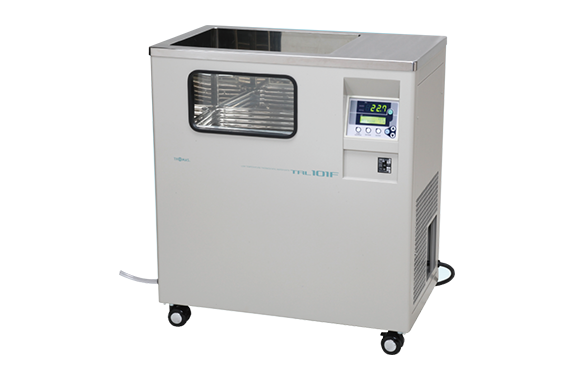

Model: TRL-101F (Non-CFC type)

The tank has a wide opening (W400mm x D300mm), allowing for the processing of many samples at once.
A viewing window on the front allows for observation of changes in the samples.
The tank is 300mm deep, but it comes with adjustable shelves, accommodating containers of various heights.
In terms of performance, it achieves a temperature stability of ±0.05℃ with high-precision temperature control.
It features a selectable auto-start/auto-stop timer (maximum 99 hours 59 minutes).

External dimensions	W650×D380×H715mm
Internal dimensions of the tank	W400 x D300 x H300 (Effective Height 245) mm
Effective dimensions inside the tank	W365×D260×H245mm Window dimensions: W262×H130mm
Capacity (L)	32
Temperature range (°C)	-5℃ 60℃
temperature stability	Within ±0.05℃
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Cartridge heater 1kW
Refrigeration unit	Air-cooled 130W HFO-1234yf
cooling capacity	197W (170kcal/h)
cooling capacity environment	Water temperature +20℃ 50Hz
Agitator	Jet agitation type magnetic pump
safety equipment	Leakage circuit breaker, self-diagnostic function (HC: prevention of overheating of tank temperature, LC: prevention of low temperature, low water level, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, prevention of incorrect settings)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish Front observation window included
accessories	One set of stainless steel height-adjustable shelves.
power supply	AC100V 14A 50/60Hz, 2m cord with plug.
others	Drain port outer diameter Φ12mm
weight	Approximately 45 kg
