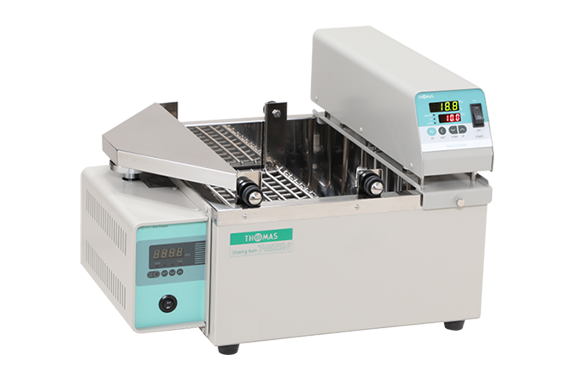

Thomas Scientific T-22SJ Shakers And Constant Temperature Shaking Water Baths

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-22SJ

A new feature of the constant-temperature shaking water bath is that the shaking speed can now be digitally set and displayed, making operation and verification easier.
This is a shaking water bath equipped with a digital temperature controller. (Suitable for use at room temperature +10°C to +60°C)
The oscillation rate can be set to any desired value from 12 to 110 times/minute, and the oscillation amplitude can also be changed to 20, 30, or 40 mm.
The spring-loaded shaking rack allows you to set various containers simultaneously. A shallow rack that can also be used with centrifuge tubes is available as an option.
It is also equipped with safety features such as over-temperature protection and low water level alarms.
*We also have the “T-22SA” model with a 20L capacity.

Usage example: Various incubation processes, including the cultivation of microorganisms such as E. coli and enzymatic reactions.

Specification

External dimensions	W460×D390×H320mm
Internal dimensions of the tank	W325×D350×H150mm
Effective dimensions inside the tank	W225×D350×H150mm
Shaking rack dimensions	W160×D300×H60mm
Number of vibrations	Digital setting/display type, 12-110 strokes/min
Swing amplitude	20/30/40mm (3-stage adjustable)
Capacity (L)	14
Temperature range (°C)	Room temperature +10℃ 60℃
temperature stability	±0.1℃
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheath type 500W x 2
Oscillating motor	Electronically controlled motor, 25W
Agitator	Jet agitation method
safety equipment	Heater dry-boil prevention, tank temperature overheating prevention, power fuse
Material	Inner tank and rack: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 11A 50/60Hz, 2m cord with plug.
weight	Approximately 17kg
