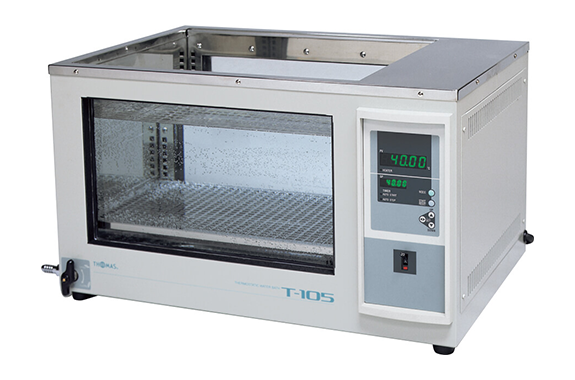

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-105B

• High-precision large constant-temperature water bath with temperature stability of ±0.01℃ (at 40℃)
• The tank temperature display and temperature setting are in increments of “0.1℃”. A separate model, “T-105Be”, is also available, which allows for display and setting in increments of “0.01℃”.
• Large 80L capacity, large window for convenient observation of the inside of the tank
• Equipped with various safety features such as overheating prevention and water level drop alarm.
• Selectable timer function with auto-stop and auto-start (maximum 99 hours 59 minutes)
• This model prioritizes heating capacity (AC100V 26A), but we also have the T-105Be model with the same tank size that can be powered from a wall outlet.

Usage example

With an 80L tank capacity and observation windows on both sides, it is used for incubating many samples, material testing, thermometer testing, and more.

Specification

External dimensions	W680×D575×H420mm
Internal dimensions of the tank	W500×D500×H350mm
Effective dimensions inside the tank	W500 x D500 x H280mm Window dimensions W393 x H218mm (both sides)
Capacity (L)	80
Temperature range (°C)	Room temperature +5℃ 80℃ *When using the lid, temperature control to room temperature + 5°C is not possible. (However, a lid is required on the open part of the tank at temperatures above +70°C.) The lid is optional.
temperature distribution	±0.02℃ (at 40℃) ±0.03℃ (when using the lid at 60℃)
temperature stability	±0.01℃ (at 40℃) ±0.02℃ or less (when using the lid at 60℃)
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheath type 2.6kW
Agitator	Magnetic pump jet agitation system
safety equipment	Leakage circuit breaker, self-diagnostic function (prevention of overheating of tank temperature, heater disconnection, low water level, temperature sensor malfunction, triac short circuit)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel height-adjustable shelf board (1 set)
power supply	AC100V 26A 50/60Hz, 3m cord (no plug), power supply capacity 30A or more.
others	Drain opening outer diameter Φ16mm
weight	42kg

Illustrations
