Manufacturer: Thomas Scientific Instruments Co., Ltd.

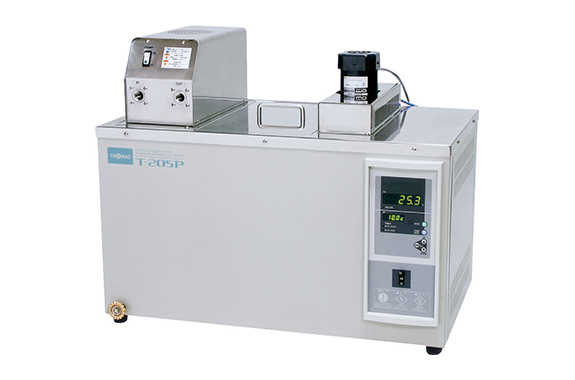

Model: T-205P

This is a constant-temperature oil bath capable of circulating liquid media at a maximum temperature of 150°C externally.
A powerful stirring motor allows it to handle even highly viscous oils (MAX 100 mm²/S).
Equipped with a high-head circulation pump capable of transporting highly viscous liquids, it can deliver the liquid to an external tank or jacket for heating and constant temperature maintenance.

• High temperature stability (±0.1℃) due to PID control.
• Equipped with various safety features such as overheat protection, dry-boil protection, and liquid level drop alarm.
  Custom modifications for a Max 180℃ type are also available.
• Timer operation is selectable.
  Selectable auto-stop/auto-start timer (maximum 99 hours 59 minutes)
  *Excluding circulation pump

External dimensions	W640×D380×H525mm
Internal dimensions of the tank	W440×D300×H300mm
Capacity (L)	36
Temperature range (°C)	Room temperature +10℃ 150℃
temperature distribution	±0.2℃ (at 120℃ using silicone oil)
temperature stability	±0.1℃ ( using Element14PDMS100J silicone oil at 120℃ )
temperature control	Digital temperature indicator and controller, PID control system
timer	1 minute to 99 hours 59 minutes: Auto start timer or auto stop timer
heater	Sheath type 2kW
Agitator	Vertical propeller agitator type, 22W motor
Circulation pump	Stainless steel 90W condenser motor Maximum flow rate 20 L/min, maximum head 12 m (at 100 mm²/s silicone oil, 100°C) Maximum flow rate 15 L/min, maximum head 10 m (at 100 mm²/s silicone oil, 25°C)
Circulation IN-OUT	Rp 3/8
safety equipment	Leakage circuit breaker, self-diagnostic function (overheating of tank temperature, heater disconnection, temperature sensor malfunction, low liquid level, triac short circuit)
Material	Inner tank: Stainless steel (SUS-304) Pump wetted parts: Stainless steel (SUS-304), Bearings: Ceramic Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel lid
power supply	AC100V 21A 50/60Hz, 3m cord (no plug), Power supply capacity 30A or more.
others	Drain opening outer diameter Φ12mm
weight	36kg
