Manufacturer: Thomas Scientific Instruments Co., Ltd.

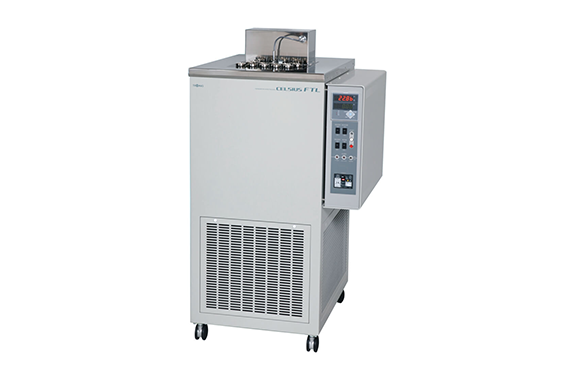

Model: Celsius FTL

• Low-temperature wide-range Celsius type: Temperature range -40 to +30°C, temperature stability within ±0.05°C
• Usable in a wide temperature range, from below freezing.
• Equipped with various safety features such as over-temperature protection and liquid level drop alarm.
• By using a liquid as the medium, a uniform and disturbance-resistant temperature environment is achieved compared to an air chamber.

External dimensions	W640 x D650 x H1165 (Aquarium 1040 + Motor 125) mm
Internal dimensions of the tank	W250×D300×H400mm
Capacity (L)	29
Temperature range (°C)	-40℃ room temperature
temperature stability	Within ±0.05℃
temperature control	Digital temperature indicator and controller, PID control system
Number of measurement thermometers	10 units (includes 10 thermometer holders and 1 holder for a reference thermometer)
heater	Sheath type 2kW
Refrigeration unit	Air-cooled 750W HFC-404A
Agitator	Vertical propeller agitator type, 25W motor
safety equipment	Leakage circuit breaker, overheating prevention alarm for the tank, refrigerator protection circuit, low liquid level alarm.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC200V, three-phase, 14A, 50/60Hz, 3m cord (no plug), power supply capacity 30A or more.
others	Drain opening, outer diameter Φ16mm
weight	Approximately 80 kg
