Manufacturer: Thomas Scientific Instruments Co., Ltd.

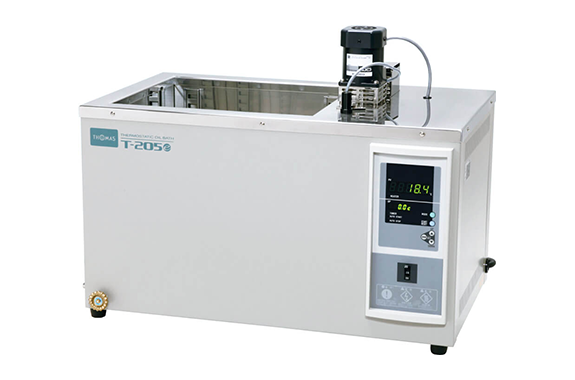

Model: T-205e

This constant-temperature oil bath has a 36L capacity and ample usable space, and can be used up to +200°C.
Its powerful agitator motor allows it to handle even highly viscous oils (MAX 100 mm²/s).

• *A standard AC100V 15A wall outlet can be used.
  A separate model, the T-205 (AC200V 20A), which provides more powerful heating, is also available.
• High temperature stability through PID control.
• Equipped with various safety features such as overheat protection, dry-boil protection, and liquid level drop alarm.
• Timer operation is selectable:
  Auto-stop/auto-start timer (maximum 99 hours 59 minutes)

External dimensions	W640×D380×H500mm
Internal dimensions of the tank	W440×D300×H300mm
Effective dimensions inside the tank	W350×D300×H300mm
Capacity (L)	36
Temperature range (°C)	Room temperature +10℃ 200℃
temperature distribution	±0.2℃ (180℃ using silicone oil)
temperature stability	±0.05℃ (using 120℃ silicone oil)
temperature control	Digital temperature indicator and controller, PID control system
timer	1 minute to 99 hours 59 minutes Auto Start Timer or Auto Stop Timer
heater	Sheathed type 1.4kW
Agitator	Vertical propeller agitator type, 22W motor
safety equipment	Leakage circuit breaker, self-diagnostic function (overheating of tank temperature, heater disconnection, temperature sensor malfunction, low liquid level, triac short circuit)
Material	Inner tank: Stainless steel (SUS-304)　 Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel height-adjustable shelf board (1 set)
power supply	AC100V 15A 50/60Hz, 2m cord with plug.
others	Drain opening outer diameter Φ12mm
weight	Approximately 25kg

Illustrations
