Thomas Scientific Instruments Co.

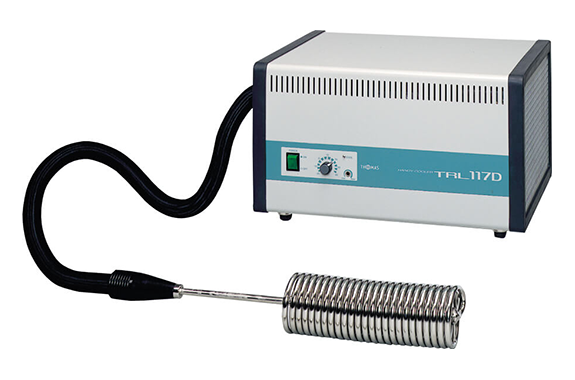

Thomas Scientific TRL-117D Submersible Hand Cooler
Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-117D
- Built-in temperature controller capable of cooling down to -20℃ (temperature control ±1.0℃)
- Offers the highest cooling capacity among AC100V power supply types (810W at 10℃).
- It can cool up to approximately 80L of media liquid.
- The cooling coil is a robust spiral type (copper tube with plated finish).
- Can be incorporated into equipment as a cooling unit.
Specification
| External dimensions | W490×D385×H290mm |
|---|---|
| Temperature range (°C) | -20℃ room temperature |
| temperature control | Electronic temperature controller ON-OFF control method with adjustable sensitivity function (1℃ to 5℃) |
| Refrigeration unit | Air-cooled 400W |
| cooling capacity | 810W (700kcal/h) |
| cooling capacity environment | At water temperature +10℃ 50Hz |
| refrigerant | HFC-404A |
| Cooling coil | φ100 x H300mm spiral type (copper pipe plated finish) |
| power supply | AC100V 8A 50/60Hz, 2m cord with plug |
| weight | Approximately 35kg |
| Price (excluding tax) | ¥462,000 |
| option | Stainless steel coil ¥79,000 Flexible tube 2m ¥26,000 |
| Individual Item Catalog | Download individual product catalog (PDF) |
Performance graph
Cooling Capacity Table TRL-117D
| Liquid Temperature (°C) | Cooling Capacity (W) | kcal/h |
|---|---|---|
| 20 | 850 | 731 |
| 10 | 810 | 697 |
| 0 | 630 | 542 |
| -10 | 350 | 301 |
| -20 | 90 | 77 |
Illustrations
