Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-11LP

The TRL-11L’s programmable control specifications allow for a wider range of applications.

• Easy Setup Operation: Program operation can be easily performed by simply setting the items displayed on the message display unit.
• You can choose between constant-value operation and programmed operation. Since you can choose the operation method, constant-value operation is of course possible.

External dimensions	W425×D500×H(Aquarium 510 + Control Unit 240) mm
Internal dimensions of the tank	W300×D400×H200mm
Effective dimensions inside the tank	W260×D280×H200mm
Capacity (L)	twenty two
Temperature range (°C)	-20℃ 80℃
temperature stability	Within ±0.05℃ (inside the tank when the circulation pump is not in use)
temperature control	Digital Program Control PID System Programmable Operation/Constant Operation Switchable Number of Memory Patterns: 1 pattern Number of Memory Steps: Maximum 20 steps/1 pattern Setting Time Range: 99 hours 59 minutes/1 step Selection of Cooling Operation (Refrigeration Unit ON/OFF) for Each Step
heater	Sheath type 1kW
Refrigeration unit	Air-cooled 250W HFC-134a
cooling capacity	530W (455kcal/h)
cooling capacity environment	Water temperature 20℃ 50Hz *When circulation pump is not used
Circulation pump	20W motor Agitation section: Propeller agitation  pump section: Maximum head 2m, Maximum flow rate 10L/min, Maximum discharge pressure 0.02Mpa
Circulation IN-OUT	Outer diameter φ12 hose connection (Rp3/8) movable
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of stainless steel shelves, one stainless steel lid.
power supply	AC100V 15A 50/60Hz, 2m cord with plug.
others	Drain opening outer diameter Φ10mm
weight	Approximately 46 kg

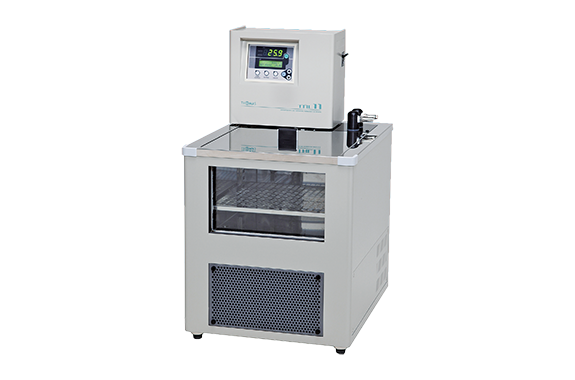

llustrations
