Manufacturer: Thomas Scientific Instruments Co., Ltd.

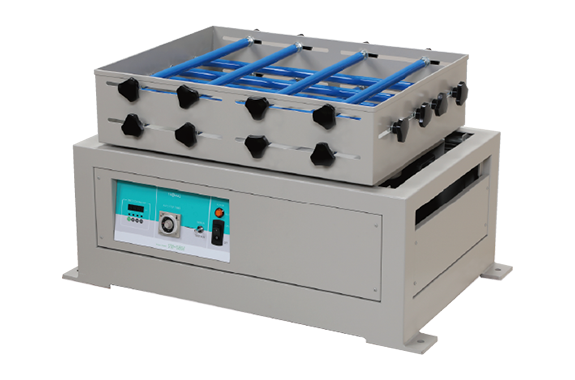

Model: TS-12H

This model complies with the Ministry of the Environment’s notification “Testing Methods for Metals and Other Substances Contained in Industrial Waste,” which came into effect on June 1, 2013. It can be widely used in various shaking and leaching tests, including soil leaching tests.

• It satisfies three essential requirements: a vibration rate of 200 times per minute, an amplitude of 45 mm, and the ability to install a long-duration timer.
• The shaking panel is a universal type that can be freely fitted with reagent bottles, plastic bottles, Erlenmeyer flasks, etc. The maximum load is approximately 12 kg. The maximum number of bottles that can be held is 9 x 1L plastic bottles, or 6 x 3L plastic bottles.
• It is equipped with an auto-stop timer that can operate for up to 300 hours.
• The shaking motor’s speed can be adjusted, allowing it to be used for stirring, mixing, etc.
  The included tachometer allows you to check the rotation speed and select your desired speed, whether low or high.
• The maximum load capacity of the shaking section is approximately 12 kg.

External dimensions	W730×D490×H450mm
Vibration panel dimensions	W610×D465×H150mm Includes 4 long and 8 short fixing bars.
Number of vibrations	20–220 times/minute (50Hz)
Swing amplitude	45mm
Temperature range (°C)	room temperature
Tachometer	Digital display (r/min). Operating time displayed via key operation. Maximum 99 hours 50 minutes.
Oscillating motor	Electronically controlled 90W motor
power supply	AC100V 3A 50/60Hz, 2m cord with plug. *While compatible with both 50Hz and 60Hz, we adjust the product to be optimal for each respective region before shipping. When ordering, please inform us of the region where you will be using the product.
weight	Approximately 65 kg

Illustrations

With the optional mounting bracket attached.
