Manufacturer: Thomas Scientific Instruments Co., Ltd.

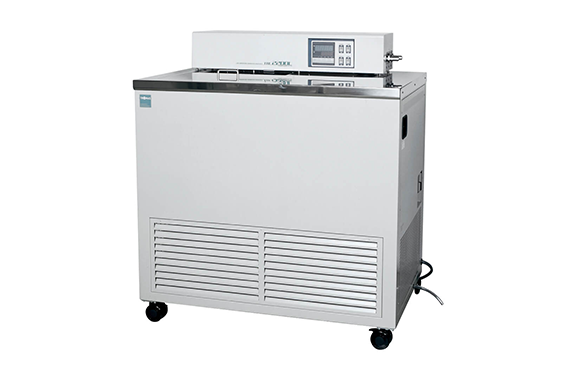

Model: TRL-2200H

This is the model with the highest cooling capacity among our circulating low-temperature constant-temperature water baths.
It covers a wide temperature range from -5°C to +80°C and, equipped with a powerful pump, is highly effective for cooling through circulation.
We also offer the TRL-2200L, which excels in the low-temperature range from -40°C to room temperature. Please choose the model best suited to your environment.
(The refrigerator will be forcibly shut down by the refrigerator protection circuit when the internal temperature exceeds 40°C.)

Usage example

Cooling of industrial machinery, analytical and measuring instruments using external circulation of cooling water; constant temperature maintenance tests using water tanks, etc.

External dimensions	W900 x D800 x H (Aquarium 1140 + Control Unit 170) mm
Internal dimensions of the tank	W400×D500×H400mm
Effective dimensions inside the tank	W320×D260×H400mm
Capacity (L)	76
Temperature range (°C)	-5℃ 80℃
temperature stability	±1.5℃
temperature control	Digital temperature indication controller ON-OFF control method
heater	Sheathed type 3kW (1kW x 3)
Refrigeration unit	Air-cooled 2200W HFC-407C
cooling capacity	①6740W(5800kcal/h) ②3600W(3100kcal/h)
cooling capacity environment	① Water temperature + 20℃ 50Hz ② Liquid temperature + 0℃ 50Hz *These values ​​are for when the circulation pump is not used.
Agitator	Vertical propeller agitator type 90W motor
Circulation pump	150W Magnetic Pump Maximum Head: 6m Maximum Flow Rate: 40L/min Maximum Discharge Pressure: 0.06Mpa
Circulation IN-OUT	Outer diameter φ25 hose connection (Rp 3/4)
safety equipment	Earth leakage circuit breaker, overheat protection device, refrigerator protection circuit, water level drop alarm
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of height-adjustable stainless steel shelves, one stainless steel lid.
power supply	AC200V, three-phase, 12A, 50/60Hz, 3m cord (no plug), power supply capacity 30A or more.
others	Drain opening outer diameter Φ16mm
weight	Approximately 200 kg
