Manufacturer: Thomas Scientific Instruments Co., Ltd.

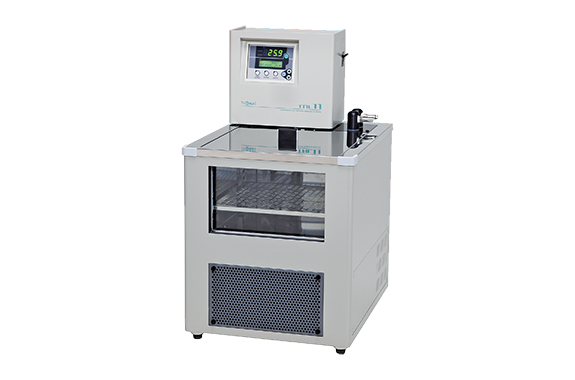

Model: TRL-11L

The TRL-11L, with a temperature range of -20 to 80°C, features a circulating fluid delivery function. Its specially designed temperature controller offers high temperature stability and functionality, making it easy and reliable to use.
Furthermore, the circulation IN-OUT ports are movable, allowing you to change the direction of IN-OUT to suit your installation environment.
The TRL-11, equipped with an observation window, is also available.

External dimensions	W425×D500×H(Aquarium 510 + Control Unit 240) mm
Internal dimensions of the tank	W300×D400×H200mm
Effective dimensions inside the tank	W260×D280×H200mm
Capacity (L)	twenty two
Temperature range (°C)	-20℃ 80℃
temperature stability	Within ±0.05℃ (inside the tank when the circulation pump is not in use)
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Sheath type 1kW
Refrigeration unit	Air-cooled 250W HFC-134a
cooling capacity	530W (455kcal/h)
cooling capacity environment	Water temperature 20℃ 50Hz *When circulation pump is not used
Circulation pump	20W motor Agitation section: Propeller agitation  pump section: Maximum head 2m, Maximum flow rate 10L/min, Maximum discharge pressure 0.02Mpa
Circulation IN-OUT	Outer diameter φ12 hose connection (Rp3/8) movable
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of stainless steel shelves, one stainless steel lid.
power supply	AC100V 15A 50/60Hz, 2m cord with plug.
others	Drain opening outer diameter Φ10mm
weight	Approximately 46 kg

llustrations
