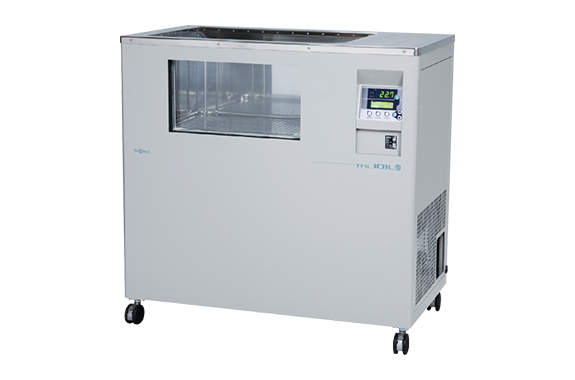

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-101Le

Large-capacity water tank that can be used with a wall outlet; power saving achieved through a unique heating and cooling PID control method.

• The approximately 90L tank capacity is effective for experiments and research involving large quantities of samples at once. The large observation window also makes it convenient for observing samples inside the tank.
• Stable Temperature Environment: By using a PID control system for temperature regulation and a powerful pump for stirring, the temperature inside the tank is effectively made uniform, creating a stable temperature environment.
  Equipped with comprehensive safety features , including a leakage circuit breaker, and mechanisms to prevent overheating, low temperatures, and water level drops inside the tank, you can use it with peace of mind.

External dimensions	W890×D510×H870mm
Internal dimensions of the tank	W600×D400×H400mm
Effective dimensions inside the tank	W570×D365×H345mm Window dimensions: W388×H198mm
Capacity (L)	89
Temperature range (°C)	0℃ 40℃
temperature stability	Within ±0.1℃
temperature control	Digital temperature indicator and controller; heating and cooling PID control system.
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Cartridge heater 500W
Refrigeration unit	Air-cooled 300W HFC-134a
cooling capacity	580W (approx. 500kcal/h)
cooling capacity environment	Water temperature +20℃ 50Hz
Agitator	Jet agitation type magnetic pump
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of stainless steel height-adjustable shelves.
power supply	AC100V 12A 50/60Hz, 2m cord with plug
others	Drain opening outer diameter Φ16mm
weight	102kg
