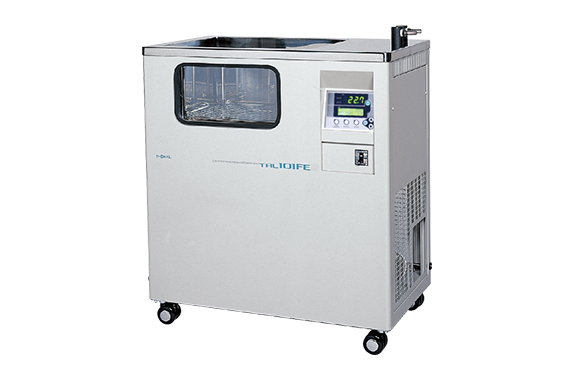

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-101FEP

This model, the TRL-101F, has the same internal tank size and is equipped with a circulation pump, making it suitable for a variety of uses. It can cool, heat, and maintain a constant temperature not only within the tank but also in external containers.

External dimensions	W650×D380×H715mm
Internal dimensions of the tank	W400 x D300 x H300 (Effective Height 245) mm
Effective dimensions inside the tank	W365×D260×H245mm Window dimensions: W262×H160mm
Capacity (L)	32
Temperature range (°C)	-10℃ 60℃
temperature stability	Within ±0.05℃
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Cartridge heater 1kW
Refrigeration unit	Air-cooled 250W HFC-134a
cooling capacity	500W (430kcal/h)
cooling capacity environment	Water temperature +20℃ 50Hz
Agitator	Jet agitation type magnetic pump
Circulation pump	20W Magnetic Pump Maximum Head: 2m Maximum Flow Rate: 10L/min Maximum Discharge Pressure: 0.02Mpa
Circulation IN-OUT	Outer diameter φ12 hose connection (Rp 3/8)
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish Front observation window
accessories	One set of stainless steel height-adjustable shelves.
power supply	AC100V 15A 50/60Hz, 2m cord with plug
others	Drain opening outer diameter Φ12mm
weight	Approximately 58 kg
