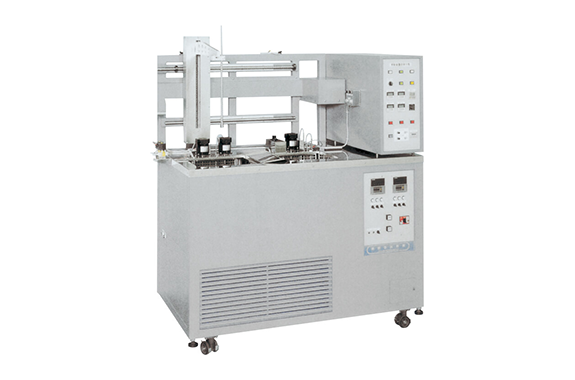

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: Type C

• This machine utilizes the large usable space of its liquid tank to be used for hot oil testing of printed circuit boards, heat resistance reliability testing of electrical components, and thermal testing of dental materials, etc.
• Horizontal moving thermal shock testing apparatus. The horizontal moving structure allows for testing of heavy samples.
• Equipped with a dedicated structure and controller for thermal shock testing.
• Various safety devices designed for long-term operation.
• An automatic water supply function is available as an option to prevent water evaporation during continuous use.
• *We also accept consultations for custom-made models to meet customer specifications regarding temperature range, ancillary equipment, etc.
• *Automatic water supply function is only available when water is used as the liquid.
• *In this case, the customer is responsible for connecting the piping to the waterway.
• *The price is a reference price. We will discuss it with you after you have confirmed the specifications and usage conditions.

• specification

  External dimensions	W1600×D900×H1640mm
  Capacity (L)	Low temperature tank: 59L High temperature tank: 46L
  Temperature range (°C)	0℃ 260℃ Low-temperature chamber: 0°C to room temperature (when there is no load inside the chamber) High-temperature chamber: Room temperature to +260°C
  temperature stability	Low temperature chamber: ±1°C; High temperature chamber: ±0.2°C (when the chamber is unloaded)
  power supply	AC200V, three-phase, 21A (at full load), 50/60Hz, 3m cord (no plug), power supply capacity 30A or more.

  high temperature bath	Internal dimensions of the tank	W350×D400×H350mm
  	Effective dimensions inside the tank	W350×D300×H330mm
  	Temperature range	Room temperature to +260℃
  	temperature stability	±0.2℃ (when the tank is unloaded)
  cryostat	Internal dimensions of the tank	W400×D450×H350mm
  	Effective dimensions inside the tank	W350×D300×H330mm
  	Temperature range	0°C to room temperature (when the chamber is unloaded)
  	temperature stability	±1℃
  Drive unit	Drive system	Motor-driven by a reversible motor; horizontal and vertical movement.
  	Immersion time	Variable
  	liquid draining time	Variable
  	counter	6-digit preset type (automatically stops after adding up to the set value)
