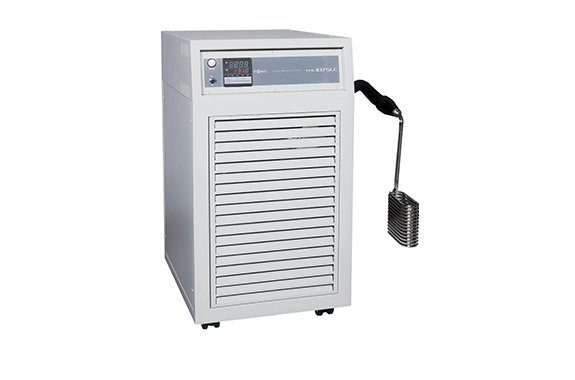

Thomas Scientific TRL-107SL Submersible Hand Cooler

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-107SL

Ultra-low temperature cooler capable of cooling down to -80℃
The cooling coil features a compact, space-saving design (copper tube with plated finish).
This product does not have a built-in temperature controller, but the TRL-107SLC model with a built-in temperature controller is also available.
*We also accept orders for custom-shaped coils.
*It can also be incorporated into the device as a cooling unit.
*Glycol-based antifreezes such as Aurora Blain cannot be used at temperatures below -20°C (due to solidification around the cooling coil).
*This product will be adjusted to match your power frequency. Please specify either 50Hz or 60Hz when placing your order.
* We can accommodate special specifications, such as changes to the material and shape of the cooling coil, so please feel free to contact us.

Specification

External dimensions	W430×D530×H770mm
Temperature range (°C)	-80℃ -10℃ (Recommended operating temperature)
Refrigeration unit	Air-cooled 400W x 2 dual refrigeration method
cooling capacity	209W (180kcal/h)
cooling capacity environment	Liquid temperature -60°C, 50Hz
refrigerant	HFC-404A, HFC-23
Cooling coil	55 x 150 x 130 mm spiral type (copper pipe plated finish)
power supply	AC100V 12A 50/60Hz, 3m cord (no plug) , Power supply capacity 20A or more. *While compatible with both 50Hz and 60Hz, we adjust the product to be optimal for each region before shipping. When ordering, please let us know the region where you will be using the product.
weight	Approximately 95 kg
