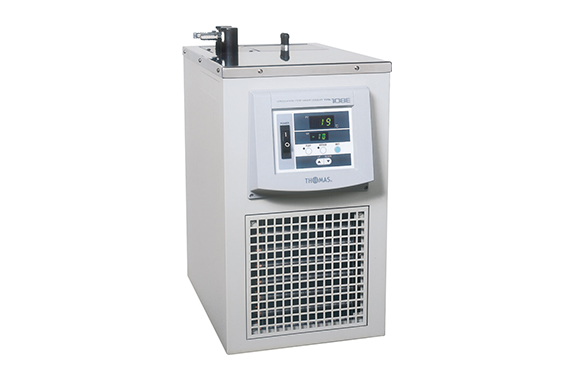

Thomas Scientific TRL-108E (Non-CFC type) Circulating Hand Cooler

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-108E

This is a cooling water circulation device/chiller with ON-OFF control (±1.0℃). It’s a compact size suitable for tabletop use.
It allows for constant temperature maintenance with simple operation.

Usage example

Cooling and temperature maintenance through circulation in sealed piping systems for heat exchange coils, jackets, chromatography columns, electrophoresis systems, constant temperature water baths for kinematic viscosity measurement, etc., as well as cooling of various analytical and measuring instruments.

Option

The rubber feet can be replaced with casters.

Specification

External dimensions	W260×D370×H450mm
Internal dimensions of the tank	W180×D110×H180mm
Capacity (L)	3.0
Temperature range (°C)	-10℃ room temperature
temperature stability	±1℃ (inside the tank)
temperature control	Digital temperature indication controller ON-OFF control method
Refrigeration unit	Air-cooled 130W HFO-1234yf
cooling capacity	162W (140kcal/h)
cooling capacity environment	At water temperature +10℃ 50Hz
Agitator	Due to the jet of discharged liquid
Circulation pump	20W magnetic pump, maximum head 2m, maximum flow rate 9L/min, maximum discharge pressure 0.02Mpa
Circulation IN-OUT	Outer diameter φ12 hose connector (Rp 3/8) (suitable for hoses with an inner diameter of Φ10 mm)
safety equipment	Power breaker, refrigerator protection circuit
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Bakelite lid (1 piece)
power supply	AC100V 5A 50/60Hz, 2m cord with plug
weight	Approximately 29kg
Price (excluding tax)	¥360,000
option	Caster installation: ¥6,000
Individual Item Catalog	Download individual product catalog (PDF)
