Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-55

• This is a constant-temperature water bath that primarily uses external circulation.
• Equipped with a high-power 1.3kW heater in a compact body, it can be used up to a maximum of 80°C. (A T-56 model is also available that can be used up to a maximum of 90°C.)
• Equipped with various safety features such as overheat protection and dry-boil protection.

Usage example

Heating and temperature maintenance of various reaction tanks by circulating hot water through jackets and heat exchangers.

Specification

External dimensions	W290×D370×H (water tank 460+circulation port 40)mm
Internal dimensions of the tank	W220×D300×H200mm
Capacity (L)	10
Temperature range (°C)	Room temperature +15℃ 80℃ Room temperature +15°C to +80°C (with circulation and lid) Room temperature +20°C to +80°C (without circulation and lid)
temperature stability	±0.2℃ (when circulation pump is not used)
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheathed type 1.3kW
Circulation pump	Magnetic pump 45W (for stirring and agitation)　 Maximum flow rate 9L/min Maximum head 5m　 Maximum discharge pressure 0.05Mpa
Circulation IN-OUT	Outer diameter φ12 hose connection (Rp 3/8)
safety equipment	Overheating prevention device for the tank, heater dry-boil prevention device, leakage circuit breaker, overflow
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel lid (SUS-304)
power supply	AC100V 14A 50/60Hz, 2m cord with plug.
weight	18kg

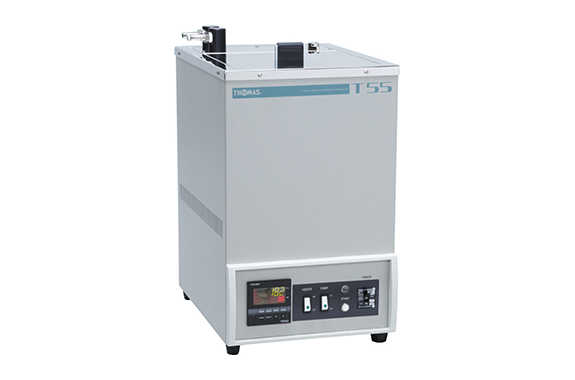

Illustrations
