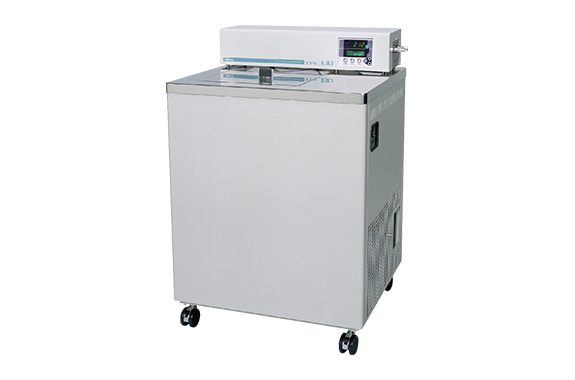

Thomas Scientific TRL-130 Low-temperature Constant-temperature Water Bath

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-130

Equipped with a refrigerator, heater, and circulation pump, it allows for various temperature tests using the tank, as well as the free cooling and heating of external equipment. The
750W refrigerator can cool down to -35°C.

Specification

External dimensions	W630 x D580 x H (Aquarium 825 + Control Unit 135) mm
Internal dimensions of the tank	W300×D400×H300mm
Effective dimensions inside the tank	W250×D280×H300mm
Capacity (L)	34
Temperature range (°C)	-35℃ 50℃
temperature stability	Within ±1.5℃
temperature control	Digital temperature indication controller ON-OFF control method
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Sheath type 500W
Refrigeration unit	Air-cooled 750W HFC-404A
cooling capacity	①2000W(1720kcal/h) ②680W(580kcal/h)
cooling capacity environment	①Water temperature +20℃ 50Hz ②Liquid temperature -20℃ 50Hz *These values are for when the circulation pump is not used.
Agitator	Vertical propeller agitation system, 22W motor
Circulation pump	20W Magnetic Pump Maximum Head: 2m Maximum Flow Rate: 10L/min Maximum Discharge Pressure: 0.02Mpa
Circulation IN-OUT	Outer diameter φ16 hose connection (Rp3/8)
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of height-adjustable stainless steel shelves, one PVC lid.
power supply	AC200V, three-phase, 5A, 50/60Hz, 3m cord (no plug), power supply capacity 15A or more.
others	Drain opening outer diameter Φ16mm
weight	Approximately 106 kg
