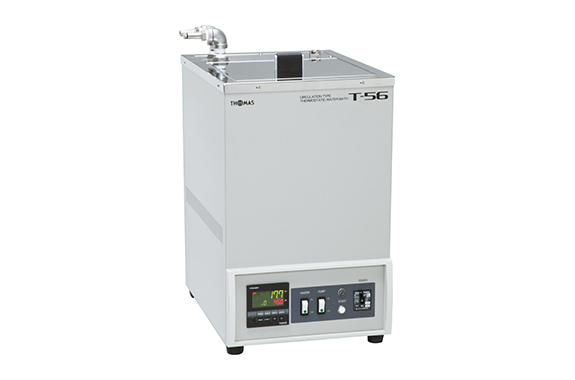

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-56R

• This device optimally controls the temperature inside an external tank.
• Cascade control enables faster and more stable control of samples.
• Equipped with a high-power 2.6kW heater in a compact body, it can be used up to a maximum of 90℃. (A T-55R model is also available that can be plugged into a wall outlet and can be used up to a maximum of 80℃.)
• Equipped with various safety features such as overheat protection and dry-boil protection.

Usage example

Heating and temperature maintenance of various reaction tanks by circulating hot water through jackets and heat exchangers.

External dimensions	W290×D370×H (water tank 460+circulation port 50)mm
Internal dimensions of the tank	W220×D300×H200mm
Capacity (L)	10
Temperature range (°C)	Room temperature +20℃ 90℃ Room temperature +20°C to +90°C (with circulation and lid) Room temperature +30°C to +90°C (without circulation and lid)
temperature stability	Within ±0.2℃ (when the circulation pump is not used)
temperature control	Cascade control temperature indicator/controller, PID control system (2 inputs)
heater	Sheath type 2.6kW
Circulation pump	Magnetic pump 90W (for stirring and agitation) Maximum flow rate 14L/min Maximum head 8m Maximum discharge pressure 0.08Mp
Circulation IN-OUT	Outer diameter φ12 hose connection (Rp 3/8)
safety equipment	Overheating prevention device for the tank, heater dry-boil prevention device, leakage circuit breaker, overflow
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel lid (SUS-304) for external temperature sensor
power supply	AC200V single phase 13A 50/60Hz, 　 plugless, 3m cord, power supply capacity 20A or more.
weight	Approximately 20kg
