Manufacturer: Thomas Scientific Instruments Co., Ltd.

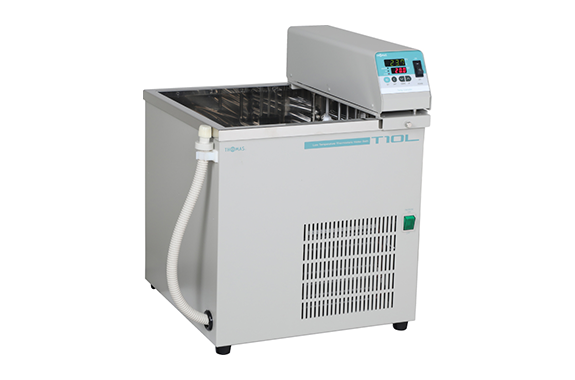

Model: T-10L (Non-CFC type)

Small and inexpensive low-temperature constant temperature water bath

• Temperature control is easy to operate with digital settings and a digital display.
  High temperature stability (within ±0.1℃) due to PID control.
• Stable temperature control and excellent tank stirring:
  Our unique jet stirring method provides quiet and powerful stirring, ensuring a stable temperature environment.
• By installing the optional external circulation pump CP-22, the liquid medium can also be circulated externally.

*If using the lid and height-adjustable shelves together, processing of the lid and shelves is required. (Processing fee is separate.)

External dimensions	W390 x D400 x H (Aquarium 395 + Control Unit 115) mm
Internal dimensions of the tank	W350×D350×H150mm
Effective dimensions inside the tank	W270×D350×H150mm
Capacity (L)	15
Temperature range (°C)	5℃ 40℃
temperature stability	±0.1°C
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheath type 500W
Refrigeration unit	Air-cooled 60W HFO-1234yf
cooling capacity	186W (160kcal/h)
cooling capacity environment	Water temperature +20℃ 50Hz
Agitator	Jet agitation method
safety equipment	Overheating prevention for the tank, prevention of heater dry-running, power fuse
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 8A 50/60Hz, 2m cord with plug
weight	24kg

Illustrations
