Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model:  T-4M

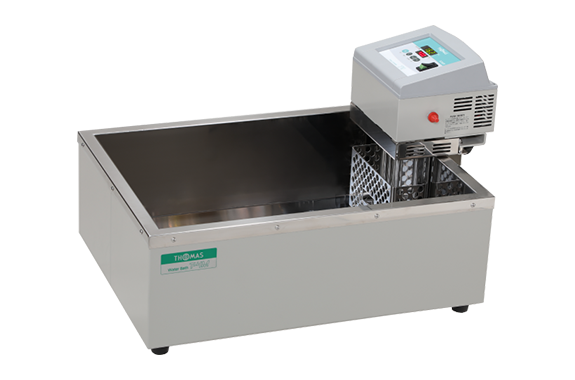

This stainless steel constant-temperature water bath features a clear digital display that shows the water temperature inside the bath while also providing excellent heat retention. In addition, the updated digital setting and display improve both temperature accuracy and visibility, making the unit easier and more reliable to operate.

• Temperature Control:
  The digital temperature indicator/controller uses a PID control method to maintain a stable temperature environment. As a result, the system achieves excellent temperature stability of ±0.1°C and allows users to monitor and control the temperature with high precision.
• Safety Features:
  The unit includes several standard safety features to ensure reliable operation. For example, the heater dry-boil prevention device protects the heater when the water level becomes too low, while the built-in fuse provides additional electrical protection.
• Available Sizes:
  Moreover, users can choose from three different sizes depending on their application and available space:
  ・T-4M – Standard type
  ・T-4MD – Deep type
  ・T-4J – Small type
• Controllers and Stainless-Steel Baths Sold Separately:
  In addition, we also offer T4 controllers and stainless-steel baths separately, which gives users greater flexibility when selecting or replacing individual components.

  Temperature Control Unit
  ・T4 Controller

  Stainless-Steel Bath Only
  ・BM-22 – for T-4M
  ・BD-22 – for T-4MD
  ・BS-22 – for T-4J

Overall, this water bath combines precise temperature control, strong heat retention, reliable safety functions, and several size options. Therefore, users can select the most suitable configuration according to their specific laboratory or testing requirements.

External dimensions	W590×D390×H340mm
Internal dimensions of the tank	W480×D350×H150mm
Effective dimensions inside the tank	W410×D350×H150mm
Capacity (L)	20
Temperature range (°C)	Room temperature +5℃ 60℃ (MAX +80℃) The temperature range is when using the included water tank and Tom Ball. However, Tom Ball is not included.
temperature stability	Within ±0.1℃
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheath type 1kW
Agitator	Jet agitation type
safety equipment	Heat-sensitive heater dry-boil prevention device (manual reset type), power fuse
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 10A 50/60Hz, 2m cord with plug.
weight	Approximately 13 kg
