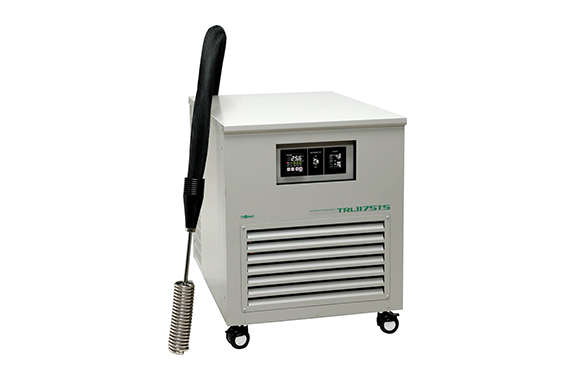

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-117STS

• Ultra-low temperature hand cooler capable of cooling down to -60℃
• Equipped with a temperature controller, allowing cooling to any desired temperature
  (however, with glycol-based antifreeze, cooling below -50°C is not possible due to solidification around the cooling coil.)
• Uses a main refrigerant with a low global warming potential
  (GWP): 675 (approximately 1/6 of HFC-404A)
• Cool 6L of methanol to -60°C in approximately 100 minutes.
• The cooling coil is a robust spiral type (copper tube with plated finish).
• * We can accommodate special specifications, such as changes to the material and shape of the cooling coil, so please feel free to contact us.

Performance graph

Cooling Capacity Table TRL-117STS

Liquid Temperature (°C)	Cooling Capacity (W)	kcal/h
0	236	203
-20	208	179
-40	184	158
-60	47	40

Illustrations
