Manufacturer: Thomas Scientific Instruments Co., Ltd.

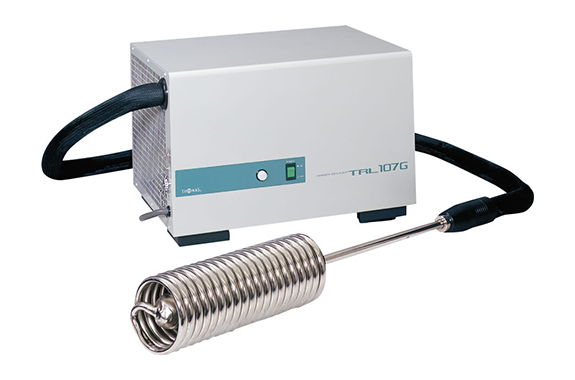

Model: TRL-107G

• Industrial cooler capable of cooling down to a minimum temperature of -20℃ and a maximum capacity of 200L.
  *May vary depending on the environment and conditions of use.
• The cooling coil is a robust spiral type (copper tube with plated finish).
• Can be incorporated into equipment as a cooling unit.
• By using the dedicated temperature controller TC-107G , it is possible to control the temperature within ±1.0℃ of the set temperature.

External dimensions	W490×D375×H330mm
Cooling capacity	50L to 200L
Temperature range (°C)	-20℃ room temperature
Refrigeration unit	Air-cooled 600W
cooling capacity	①1160W(1000kcal/h) ②850W(730kcal/h) ③240W(206kcal/h)
cooling capacity environment	① Water temperature +10℃ at 50Hz ② Liquid temperature +0℃ at 50Hz ③ Liquid temperature -20℃ at 50Hz
refrigerant	HFC-404A
Cooling coil	φ120 x H350mm spiral type (copper pipe plated finish)
power supply	AC200V, three-phase, 3A, 50/60Hz, 3m cord (no plug), power supply capacity 15A or more.
weight	Approximately 44 kg

Performance graph

Cooling Capacity Table TRL-107G

Liquid Temperature (°C)	Cooling Capacity (W)	Cooling Capacity (kcal/h)
20	1230	1058
10	1160	998
0	850	731
-10	540	464
-20	240	206

Illustrations

Cooling coil
