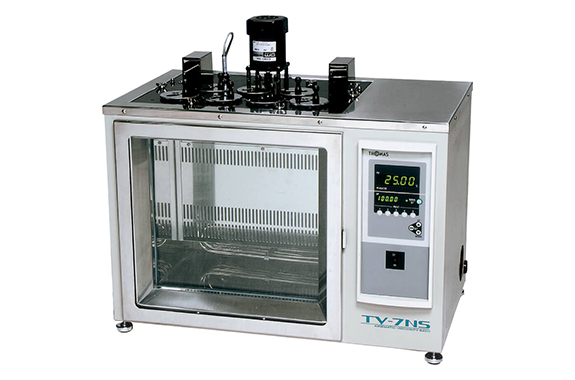

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TV-7NS

• A constant-temperature liquid bath for kinematic viscosity measurement in high-temperature ranges, equipped with a large, highly visible window.
  Temperature range: Room temperature +10°C to +200°C, temperature stability ±0.01 to 0.02°C.
• Equipped with a preset function that allows you to register up to 5 operating temperatures.
  Temperature compensation can be set for each preset value.
• Safety Features:
  Equipped with various safety features such as overheat protection and liquid level drop alarm.
  The glass safety cover prevents spillage due to breakage of the glass liquid tank and also minimizes the effects of external disturbances.

External dimensions	W600 x D360 x H545 (Aquarium 420 + Stirring motor 125) mm
Internal dimensions of the tank	W350×D250×H350mm
Capacity (L)	29
Temperature range (°C)	Room temperature +10℃ 200℃
temperature stability	±0.01℃ to 0.02℃
temperature control	Digital temperature controller with PID control, temperature compensation function, manual temperature setting, and 5-point preset temperature setting.
Number of viscometers	7 bottles
heater	Sheath type 2kW
Agitator	Vertical propeller agitator type, 22W motor
safety equipment	Leakage circuit breaker, tank over-temperature protection device, self-diagnostic function (low water level, heater disconnection, temperature sensor malfunction, triac malfunction)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
Lighting device	6W fluorescent lamp
accessories	Three-in-one viscometer holder* (7 pieces) (*Cannon-Fenske type, Ubbelohde type, and backflow U-tube type)
power supply	AC100V 22A 50/60Hz, 3m cord (no plug), Power supply capacity 30A or more
others	Drain opening, outer diameter Φ12mm
weight	Approximately 34kg
