Manufacturer: Thomas Scientific Instruments Co., Ltd.

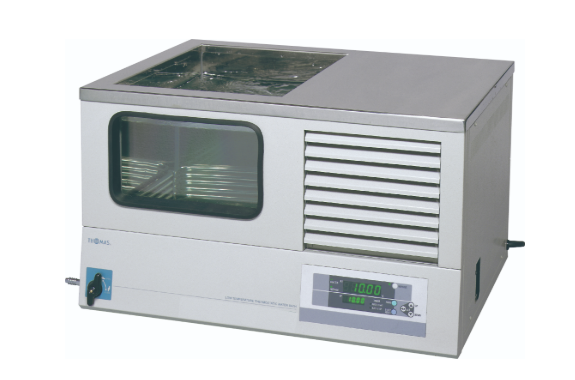

Model: TRL-101FZ (Non-CFC type)

• The specially designed temperature controller lets users set and display the temperature in 0.01°C increments. In addition, the twin jet stirring system keeps the temperature uniform inside the tank, so it provides a stable temperature environment even when users use ethylene glycol-based brine as the media liquid.
• Moreover, two models are available: the standard TRL-101FZ and the TRL-101FEZ with enhanced cooling performance.
• Furthermore, users can select either auto-start or auto-stop timer operation, with a maximum setting of 99 hours and 59 minutes.
• Additionally, the heat-resistant glass prevents condensation by working together with the refrigeration unit.

External dimensions	W650×D500×H400mm
Internal dimensions of the tank	W300×D400×H300mm
Effective dimensions inside the tank	W260×D365×H245mm Observation window W250×H143mm
Capacity (L)	32
Temperature range (°C)	-5℃ 60℃
temperature stability	±0.02℃ (at water +10℃)
temperature control	Digital temperature indicator and controller, PID control system, 1/100°C temperature setting and display.
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Cartridge heater 900W (450W x 2)
Refrigeration unit	Air-cooled 130W HFO-1234yf
cooling capacity	169W (146kcal/h)
cooling capacity environment	Water temperature +15℃ 50Hz
Agitator	Twin jet agitation system using a magnetic pump
safety equipment	Leakage circuit breaker, self-diagnostic function (overheating of tank temperature, low water level alarm, temperature sensor malfunction, refrigerator protection circuit)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 13A 50/60Hz, 2m cord with plug
others	Drain opening outer diameter Φ12mm
weight	46kg
