Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-104A

• Renewed constant temperature water bath with digital display up to 100℃.
  High temperature stability of ±0.1℃ with PID control using a digital temperature controller.
• Equipped with high-power heating capabilities with heater capacity matched to the capacity of each aquarium.
• Added a safety device to prevent overheating of the tank.
• The hot water in the tank can be circulated using an optional circulation pump.

Usage example

This product can be used for various water and heat resistance tests (of resins, paints, etc.), wood adhesion strength tests including boiling and peeling tests, and repeated testing.

External dimensions	W400×D350×H480mm
Internal dimensions of the tank	W350 x D300 x H300 (Effective H260) mm
Capacity (L)	28
Temperature range (°C)	Room temperature +5℃ 100℃ *This temperature range is for use with the lid. However, the lid is not included.
temperature stability	Within ±0.1℃
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheath type 1.4kW
Agitator	Vertical propeller agitator type, 22W motor
safety equipment	Leakage circuit breaker, tank temperature overheating prevention
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of stainless steel height-adjustable shelves.
power supply	AC100V 15A 50/60Hz cord with plug, 2m
others	Drain port outer diameter Φ12mm
weight	Approximately 25kg

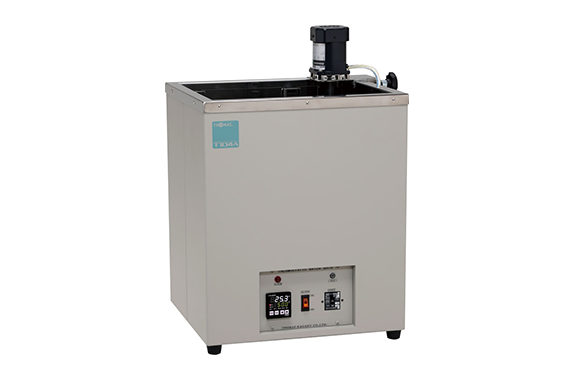

Illustrations
