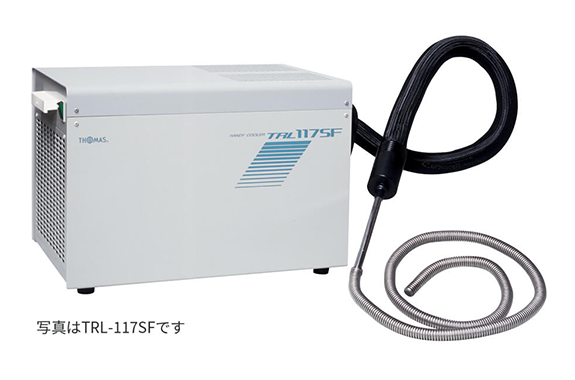

Thomas Scientific TRL-117SFV Submersible Hand Cooler
Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-117SFV
- A wide-range cooler capable of cooling across the entire temperature range from a maximum of 80°C to -20°C
(Our products typically cannot cool liquids above 40°C). - Integrated cooler with built-in temperature controller. (Temperature control ±1.0℃)
- The cooling coil is a flexible type made of SUS-316 stainless steel.
A spiral type (copper tube plated finish) TRL-117SV is also available as an alternative model. - It can also be incorporated into equipment as a cooling unit.
- It has a handle, making it easy to carry and set up wherever needed.
Specification
| External dimensions | W450×D310×H315mm |
|---|---|
| Temperature range (°C) | -20℃ 80℃ |
| Refrigeration unit | Air-cooled 300W |
| cooling capacity | ①581W(500kcal/h) ②697W(600kcal/h) |
| cooling capacity environment | ① At water temperature + 60℃ 50Hz ② At water temperature + 20℃ 50Hz |
| refrigerant | HFC-134a |
| Cooling coil | φ17 x 1400mm Flexible type (Made of SUS-316 stainless steel) |
| power supply | AC100V 6A 50/60Hz, 2m cord with plug |
| weight | Approximately 25kg |
| Price (excluding tax) | ¥360,000 |
| option | Flexible tube, 2m, ¥26,000 |
| Individual Item Catalog | Download individual product catalog (PDF) |
Performance graph
Cooling Capacity Table TRL-117SFV
| Liquid Temperature (°C) | Cooling Capacity (W) | kcal/h |
|---|---|---|
| 80 | 581 | 500 |
| 60 | 581 | 500 |
| 20 | 697 | 600 |
| 10 | 639 | 550 |
Illustrations
