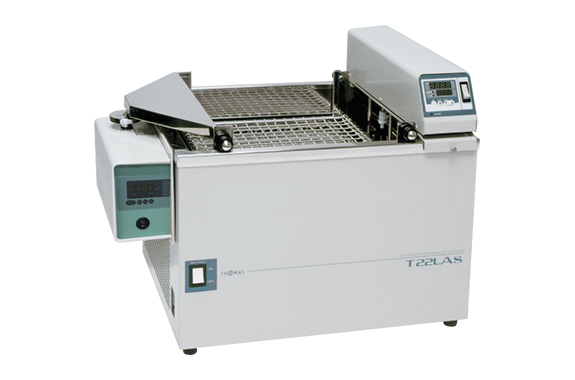

Thomas Scientific T-22LAS (Non-CFC type) Shakers And Constant Temperature Shaking Water Baths

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-22LAS (Non-CFC type)

A new feature of the constant-temperature shaking water bath is that the shaking speed can now be digitally set and displayed, making operation and verification easier.
Low-temperature shaking water tank with built-in refrigerator (usable at +5°C to +50°C)
Variable oscillation speed of 12 to 110 times/minute, and oscillation amplitude of 20, 30, and 40 mm.
A simple shaker unit with a digital temperature controller and a digital tachometer.
The spacious spring-loaded shake rack allows you to set various containers simultaneously.
It is also equipped with safety features such as over-temperature protection and low water level alarms.

Usage example: Culture of E. coli and other bacteria, yeast culture, synthesis of chemicals, and various incubation processes and other shaking tests

specification

External dimensions	W630 x D395 x H (Aquarium 370 + Electrical box 115) mm
Internal dimensions of the tank	W480×D350×H150mm
Effective dimensions inside the tank	W405×D350×H150mm
Shaking rack dimensions	W320 x D300 x H60mm (Universal type spring rack)
Number of vibrations	Digital setting and display type; 12-110 strokes/minute
Swing amplitude	20/30/40mm (3-stage adjustable)
Capacity (L)	twenty one
Temperature range (°C)	5℃ 50℃
temperature stability	±0.1℃
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheath type 500W
Refrigeration unit	Air-cooled 130W HFO-1234yf
Oscillating motor	Electronically controlled motor, 25W
Agitator	Jet agitation method
safety equipment	Leakage circuit breaker, low water level alarm, and tank temperature overheat prevention.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 10A 50/60Hz, 2m cord with plug.
others	Drain opening outer diameter Φ12mm
weight	Approximately 36kg
