Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-201

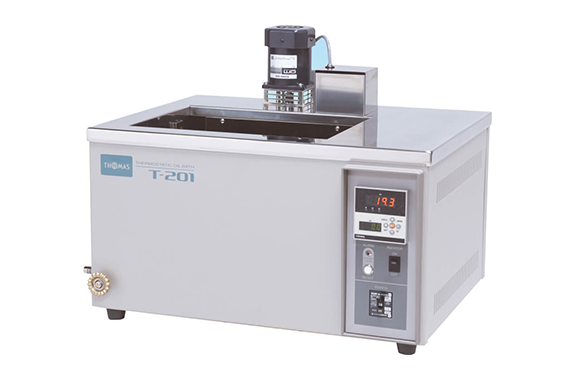

This is a high-performance, compact constant-temperature oil bath with a 16L capacity.
It reaches a maximum temperature of +200°C in approximately 100 minutes.
A powerful agitator motor allows it to handle even highly viscous oils (MAX 100 mm²/s).

• High temperature stability (±0.1℃) due to PID control for temperature control.
• Safety features include an over-temperature prevention alarm and a low liquid level alarm.
• *In addition, we also offer the “T-201P” model, which has an external circulation function and can deliver liquid media up to 200°C.

External dimensions	W500×D385×H410mm
Internal dimensions of the tank	W300×D310×H200mm
Effective dimensions inside the tank	W300×D220×H200mm
Capacity (L)	16
Temperature range (°C)	Room temperature +10℃ 200℃
temperature stability	Within ±0.1℃
temperature control	Digital temperature indicator and controller, PID control system
heater	Sheathed type 1.2kW
Agitator	Vertical propeller agitator type, 22W motor
safety equipment	Leakage circuit breaker, overheat prevention in tank, low liquid level alarm.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel shelf board (1 set)
power supply	AC100V 13A 50/60Hz, 2m cord with plug.
others	Drain opening outer diameter Φ12mm
weight	Approximately 16 kg

Illustrations
