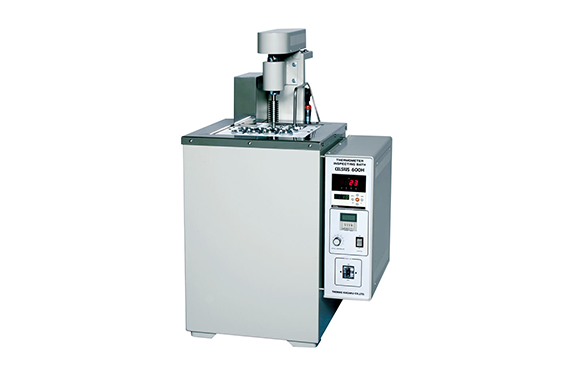

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: Celsius 600H

• High-temperature type Celsius series: Max 600℃, high temperature stability within ±0.5℃(display and setting in increments of 0.1℃)
• The heat transfer medium is glass, which is directly heated. It is equipped with a stirring structure and a dedicated heater that are suited to the use of glass (*1).
• Equipped with various safety features for use at high temperatures, including an overheat protection function.
• By using nitrite as the heating medium, a uniform and disturbance-resistant temperature environment is achieved compared to an air chamber.

*1. We do not sell glass. (It is generally a mixture of 50% sodium nitrate and 50% potassium nitrate.)

External dimensions	W545×D535×H870 (Aquarium 590 + Stirring motor 280) mm
Internal dimensions of the tank	W200×D200×H450mm
Capacity (L)	18
Temperature range (°C)	300℃ 600℃
temperature stability	Within ±0.5℃
temperature control	Digital temperature indicator and controller, PID control system
Number of measurement thermometers	10 units (includes 10 thermometer holders and 1 holder for a reference thermometer)
heater	Sheath-type special heater 4kW
Agitator	Vertical propeller-type agitator 90W speed control motor with timer for agitator motor.
safety equipment	Leakage circuit breaker, overheat prevention inside the tank, sensor malfunction alarm.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC200V single phase 21A 50/60Hz, plugless cord 3m, power supply capacity 30A or more
weight	Approximately 81 kg

llustrations
