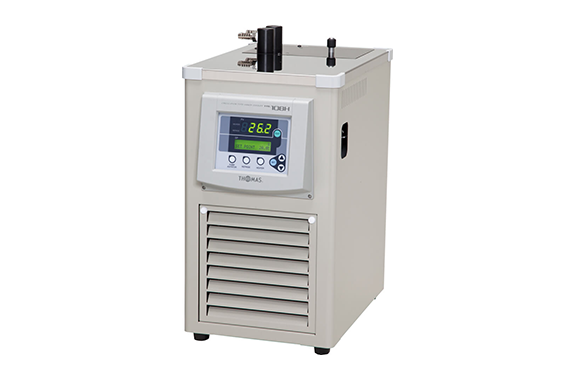

Thomas Scientific TRL-108H (Non-CFC type) Circulating Hand Cooler

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-108H

This is a highly stable cooling water circulation system/chiller with PID control (±0.05℃). Its compact size allows for tabletop use and it features various safety functions, enabling constant temperature maintenance with simple operation.

Usage example

Cooling and temperature maintenance through circulation in sealed piping systems for heat exchange coils, jackets, chromatography columns, electrophoresis systems, constant temperature water baths for kinematic viscosity measurement, etc., as well as cooling of various analytical and measuring instruments.

Option

The rubber feet can be replaced with casters.

Specification

External dimensions	W265×D375×H455mm
Internal dimensions of the tank	W180×D110×H180mm
Capacity (L)	3.0
Temperature range (°C)	-10℃ 80℃ When the internal temperature of the tank exceeds 40°C, the refrigerator’s protection circuit will forcibly shut down the refrigerator. Therefore, cooling by the refrigerator is not possible when the internal temperature of the tank is between 80°C and 40°C.
temperature stability	±0.05℃ (inside the tank)
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Sheath type 500W
Refrigeration unit	Air-cooled 130W HFO-1234yf
cooling capacity	162W (140kcal/h)
cooling capacity environment	At water temperature +10℃ 50Hz
Agitator	Due to the jet of discharged liquid
Circulation pump	20W Magnetic Pump (Agitation Type) Maximum Head 2m Maximum Flow Rate 9L/min Maximum Discharge Pressure 0.02Mpa
Circulation IN-OUT	Outer diameter φ12 hose connector (Rp 3/8) (suitable for hoses with an inner diameter of Φ10 mm)
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Bakelite lid (1 piece)
power supply	AC100V 9A 50/60Hz, 2m cord with plug
others	Drain port outer diameter Φ10mm
weight	Approximately 29kg
Price (excluding tax)	¥415,000
option	Caster installation: ¥6,000
