Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-4C

• The fluid can be easily supplied to and circulated through external heat exchangers, jackets, and other sealed systems up to 40°C.
• In addition, the refrigerator provides excellent low-temperature performance, so this compact unit can cool down to -40°C. Moreover, it offers a high cooling capacity of 220 W at -20°C, allowing users to cool samples rapidly to low temperatures.
• Furthermore, the compact design reduces the required installation space.

External dimensions	W320 x D510 x H (610mm for the tank + 115mm for the stirring motor) mm
Internal dimensions of the tank	W200×D200×H200mm
Capacity (L)	7
Temperature range (°C)	-40℃ room temperature
temperature stability	±1.5℃
temperature control	Digital temperature indication controller ON-OFF control method
Refrigeration unit	Air-cooled 400W HFC-404A
cooling capacity	220W (189kcal/h)
cooling capacity environment	Liquid temperature -20℃ 50Hz
Circulation pump	40W motor Agitation section: Propeller type agitation Pump section: Maximum head 2m, Maximum flow rate 10L/min, Maximum discharge pressure 0.02Mpa
Circulation IN-OUT	Outer diameter φ12 hose connection (Rp 3/8)
safety equipment	Power breaker, refrigerator protection circuit
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One Bakelite lid
power supply	AC100V 7A 50/60Hz, 2m cord with plug
others	Drain opening outer diameter Φ9mm
weight	Approximately 45 kg

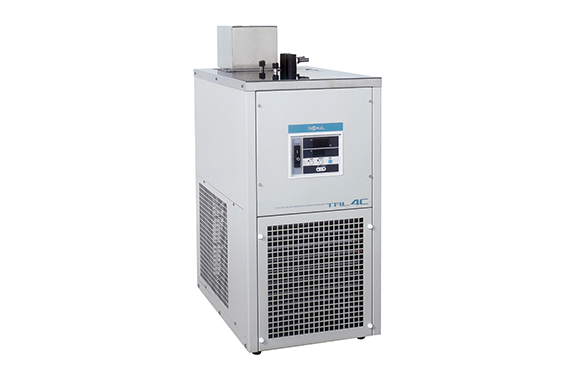

llustrations
