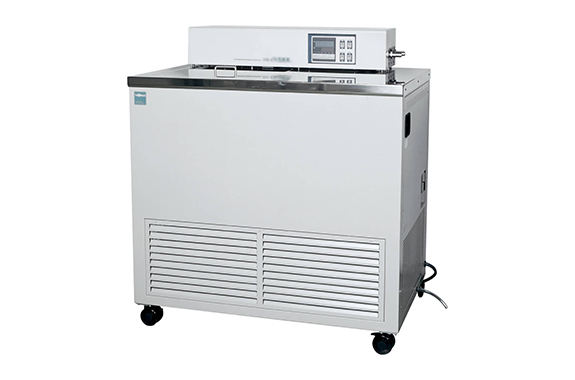

Thomas Scientific TRL-2200EX Low-temperature Constant-temperature Water Bath

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-2200EX
This refrigerator can operate across the entire temperature range from -5°C to +80°C, and is particularly effective for cooling heat loads in high-temperature ranges.
(Normally, our products cannot operate above +40°C to protect the refrigerator.) With a wide operating temperature range of -5°C to +80°C, high circulation capacity, and
comprehensive safety features including a leakage circuit breaker, over-temperature protection alarm, and low water level alarm, you can use it with peace of mind.
- Usage example
- Cooling of industrial machinery, analytical and measuring instruments using external circulation of cooling water; constant temperature maintenance tests using water tanks, etc.
Specification
External dimensions W900 x D800 x H (Aquarium 1140 + Control Unit 170) mm Internal dimensions of the tank W400×D500×H400mm Effective dimensions inside the tank W320×D260×H400mm Capacity (L) 76 Temperature range (°C) -5℃80℃temperature stability ±1.5℃ temperature control Digital temperature indication controller ON-OFF control method heater Sheathed type 3kW (1kW x 3) Refrigeration unit Air-cooled 2200W HFC-407C cooling capacity ①4650W(4000kcal/h)
②6740W(5800kcal/h)cooling capacity environment ① Water temperature +80℃ 50Hz
② Water temperature +20℃ 50Hz
*These values are for when the circulation pump is not used.Agitator Vertical propeller agitator type 90W motor Circulation pump 150W Magnetic Pump
Maximum Head: 6m Maximum Flow Rate: 40L/min
Maximum Discharge Pressure: 0.06MpaCirculation IN-OUT Outer diameter φ25 hose connection (Rp 3/4) safety equipment Earth leakage circuit breaker, overheat protection device, water level drop alarm Material Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish accessories One set of height-adjustable stainless steel shelves, one stainless steel lid. power supply AC200V, three-phase, 12A, 50/60Hz, 3m cord (no plug), power supply capacity 30A or more. others Drain opening outer diameter Φ16mm weight Approximately 200 kg llustrations
