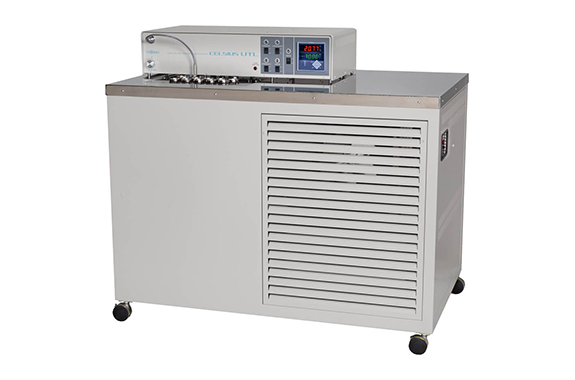

Thomas Scientific Celsius UTL Constant Temperature Liquid Bath For Kinematic Viscosity Measurement

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: Celsius UTL

Ultra-low temperature type Celsius series -70℃, high temperature stability of ±0.05℃
Dual-stage freezing method cools to -70°C in approximately 4 hours.
Equipped with various safety features such as overheat protection and heater dry-boil protection.
By using a liquid as the medium, a uniform and disturbance-resistant temperature environment is achieved compared to an air chamber.
*IQ/OQ temperature measurement service available.
It is equipped with a 25W condensation prevention heater to prevent condensation on the top surface.

Specification

External dimensions	W1120 x D700 x H1000 (water tank 830 + switchboard 170) mm
Internal dimensions of the tank	W320×D250×H420mm
Capacity (L)	33
Temperature range (°C)	-70℃ 0℃
temperature stability	±0.05℃
temperature control	Digital temperature indicator and controller with PID control system (1/100°C temperature display and setting)
Number of measurement thermometers	10 units (includes 10 thermometer holders and 1 holder for a reference thermometer)
heater	Sheathed type 1.5kW
Refrigeration unit	Air-cooled 1100W (HFC-404A) + 750W (HFC-23) (dual refrigeration method)
Agitator	Vertical propeller agitator type 25W motor
safety equipment	Leakage circuit breaker, tank temperature overheating prevention device, heater dry-boil prevention.
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC200V, three-phase, 16A, 50/60Hz, 3m cord (no plug), power supply capacity 30A or more.
others	Drain opening, outer diameter Φ12mm
weight	Approximately 175 kg
