Tohkemy Beta X Chemical Pump

Manufacturer: Tohkemy Corporation
Model: Beta X

Features

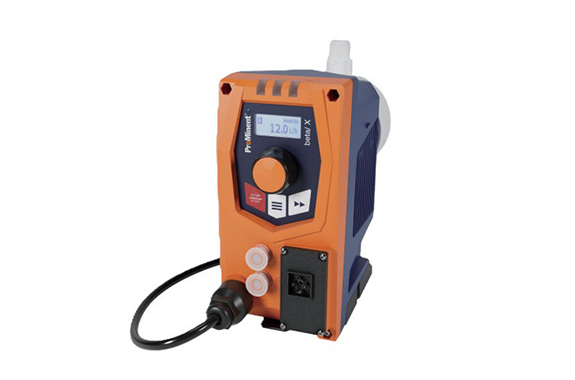

A new-generation diaphragm pump
The Beta X is a quiet, stepping-motor-driven diaphragm pump offering high precision, reduced pulsation, and simple, intuitive setup.
Stepping Motor Drive: Delivers smooth, low-pulsation transfer with high control performance.
Intuitive Operation: Set flow rates directly in L/h via click wheel and LCD—no manual stroke length or rate adjustments required.
Easy Installation: Click-in design for quick floor or wall mounting; multi-color LED for distance status/alarm monitoring.
Backflow Prevention: Ensures consistent, unidirectional liquid transfer.
Specifications & Performance
Turndown Ratio: 1:600 to 1:5,040
Dosing Accuracy: ±1% (under standard test conditions)
Wetted Materials: PVDF or Stainless Steel (SUS)

Specifications

Power supply voltage: Single-phase 100V–240V 50/60Hz
Average power consumption: 15W
Standard accessories: 3m hose, foot valve, injection valve
Protection rating: Equivalent to IP66
Compatible viscosity: 0–1000 mPas

Discharge type
Beta X BTXB	Lower limit setting	Maximum discharge amount		Maximum discharge pressure [MPa]	Stroke count [spm]	Recommended hose inner diameter (resin)	Tube outer diameter (SST)	Reference weight
Beta X BTXB	[ml/min]	[ml/min]	[L/h]	Maximum discharge pressure [MPa]	Stroke count [spm]	Recommended hose inner diameter (resin)	Tube outer diameter (SST)	PV	SST
16006	0.17	100	6.0	1.6	0～200	4mm	6mm	2.4kg	2.9kg
07018	0.30	300	18	0.7	0～200	5～6mm	8mm	2.6kg	3.9kg
04028	0.47	460	27.6	0.4	0～200	5～6mm	8mm	2.6kg	4.0kg
02050	0.84	840	50.4	0.2	0～200	5～6mm	8mm	2.7kg	4.5kg

Head material / Valve material	PV: PVDF/PVDF　SS: Stainless steel
Seal / Diaphragm Material	T: Standard Diaphragm + PTFE Seal M: vPTFE Diaphragm + _Valve PTFE (for PV & SS)
Discharge Head Version	2: With air release _valve・without _valve spring (for PV)
Power specifications	U: [Standard] AC 100–240V 50/60Hz K: DC Power (12–24VDC) 20W
Cable / plug	1: 2m open end 2: 5m open end 3: 10m open end
Module	0: No relay 1: Relay 3-pin, 240V 1x Changeover contact 240V-8A (Normally closed relay) 4: Relay 4-pin, 24V 100mA 2x N/O 24V-100mA (1 + Pacing relay normally open) A: 0-24mA Output + Relay 2-pin, 240V0, 1ADC (Used as 1+4-20mA output)
Operation	0: Manual + Contact 3: Manual + Contact + Analog Input 0/4-20mA

Options

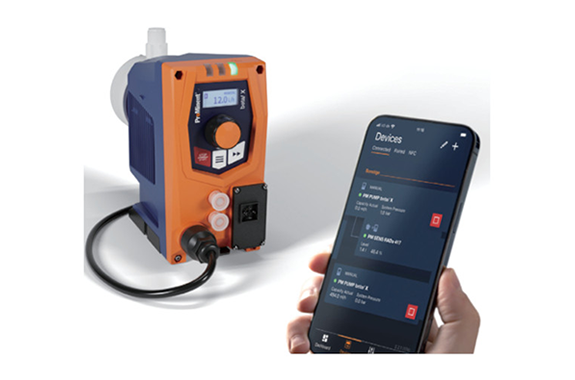

Response to digitization and remote monitoring
Programming and data reading are possible via a smartphone through Bluetooth®/NFC integration.
External signal operation
Pulse signal operation: Operates according to a voltage-free pulse signal from an external source.
Remote ON/OFF operation: Operates/stops according to a voltage-free contact signal from an external source.
Analog signal operation: Operates in conjunction with an external 4–20 mA (0–20 mA) signal.
Two-stage level switch input
Monitors the liquid level of the chemical tank, and issues a warning and stops operation when the liquid level decreases.
Alarm and pacing relays
Alarm relay: Outputs alarms for things like pump failures or low liquid levels.
Pacing relay: Outputs a volt-free contact signal with each pump stroke. Beta X
