Tohkemy Groundwater Ammonia Reducing Biological Treatment System ActiSomonas Water Treatment Systems

Manufacturer: Tohkemy Corporation
Model: Groundwater Ammonia Reducing Biological Treatment System ActiSomonas

Features

Mechanism of Ammonia Treatment

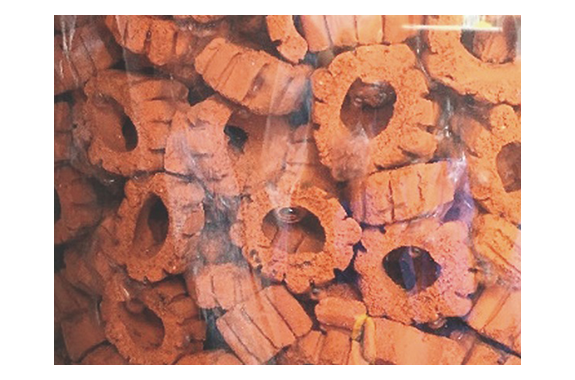

By utilizing nitrifying bacteria colonizing the filter media to oxidize ammonia, the amount of sodium hypochlorite required for well water treatment can be reduced.

Effect
By reducing ammonia nitrogen, which consumes a large amount of sodium hypochlorite, it is possible to prevent excessive chemical dosing, thereby suppressing the formation of high concentrations of chlorate.
Depending on the raw water ammonia concentration, fillers and units can be combined, making it possible to handle high concentrations of ammonia.

Product Specifications

Processing Power5m3/h10m3/h20m3/h30m3/h40m3/h50m3/h
Air Exposure Towerφ400mmφ500mmφ700mmφ900mmφ1000mmφ1100mm
Air Exposure Tower
Treatment Water
Tank
1m32m34m36m310m310m3
Ammonia Removal Towerφ1000mmφ1300mmφ1900mmφ2300mmφ2600mmφ2900mm
Treated Water Tank3m35m310m315m320m325m3
Installation Space
L×W
9×4m10×4m11×5m14.5×5.5m15×6m16×7m

Flow Sheet
