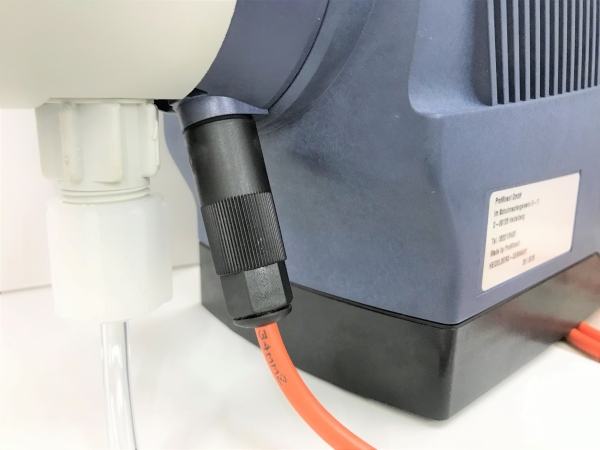

<Diaphragm damage detection>
If the diaphragm is damaged during operation, a liquid leak is detected and the pump operation is stopped.
<Relay output>
Alarm relay ： Outputs a non-voltage contact signal when an abnormality such as a defective pump or a low liquid level in a chemical tank occurs
Pacing relay ： Outputs a non-voltage contact signal for each diaphragm stroke
Tohkemy Corporation

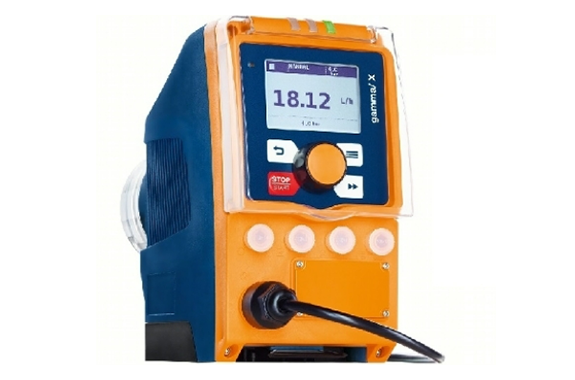

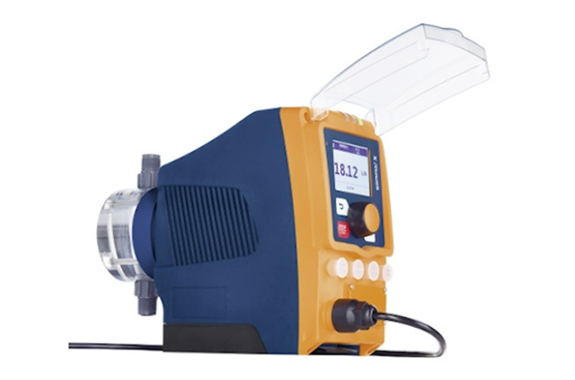

Tohkemy Gamma X Chemical Pump
Manufacturer: Tohkemy Corporation
Model: Gamma X
Features
Equipped with an automatic mode that allows easy adjustment of the discharge amount in “l/h”
Supports low pulsation discharge _and high viscosity suction with advanced solenoid control
Click wheel interface that allows intuitive operation
Virtual discharge pressure can be monitored from solenoid load
Control ratio 1: 2,000
Specifications
Flow Rate / Pressure: 38.3 – 750.0 mL/min | Max 1.6 MPa
Accuracy:±2% (under standard conditions)
Power / Enclosure: AC100 – 230V ±10% 50/60Hz | IP65 (indoor)
Environment: -10～45℃ / 95% RH (non-condensing)
Liquid-End
Materials (5 types): PP / NP (acrylic) / PV (PVDF) / SS (SUS316) / TT (PTFE/carbon)
Connections: Hose (4 x 9, 6 x 11, etc.), threaded pipes, flanges
Viscosity: Up to 3,000 mPa ・ s (cp) (with special PVT4 valve)
Drive & Control
Solenoid Control: Independent suction and discharge stroke tuning
Modes: 4 suction + 5 discharge patterns (optimized for high-viscosity, volatile, or low-pulsation dosing)
Suction Stroke Mode (4 Types)

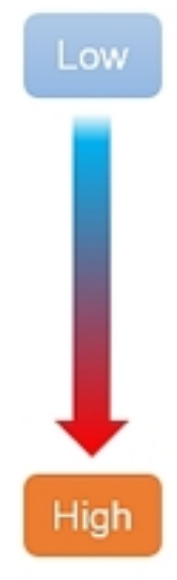

| Mode | Image | Viscosity | Max Stroke Rate (spm) Pump Capacity(%) |
|---|---|---|---|
| Normal |  |  | 200 / 100 |
| HV1 |  | 160 / 80 | |
| HV2 |  | 120 / 60 | |
| HV3 |  | 80 / 40 |
Discharge Stroke Mode (5 Types)
| Mode | Image | Application |
|---|---|---|
| Optimum |  | For maximum precision when metering and the very best results with internal pressure measurement and special functions. |
| Fast |  | For as fast a discharge stroke as possible – the duration of the discharge stroke is dependent on the stroke rate. |
| Sine mode |  | The duration of the discharge stroke is dependent on the stroke rate for a long, sine-shaped pressure stroke. |
| Continuous |  | For a continuous discharge stroke e.g. for bottling processes. The duration of the discharge stroke is dependent on the stroke rate. |
| DFMa |  | For optimum operation with a flow meter DulcoFlow® DFMa. |
<External signal operation>
Supports pulse signal, analog signal, and remote ON / OFF operation
<Various abnormality detection>
Detects pressure abnormality, gas lock, analog signal input abnormality
Can be connected to a contact output type flow monitor and the flow meter “DULCOFLOW” dedicated to metering pumps
<Timer operation>
Automatic operation can be set by day of the week and time
Model specifications
| Pump size | maximum Discharge pressure (MPa) | Maximum discharge rate | Number of strokes (spm) | Standard hose / SS (mm) | Suction lift (m) | Power consumption | mass(kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (ml/min) | (L/h) | resin/SS | |||||||||||
| standard | 1602 | 1.6 | 38.3 | 2.3 | 200 | 4×6 / φ6 | 6 | 25W | 3.7 / 5.0 | ||||
| 1604 | 1.6 | 60.0 | 3.6 | 200 | 4×6 / φ6 | 6 | 25W | 3.7 / 5.0 | |||||
| 0708 | 0.7 | 126.0 | 7.6 | 200 | 5×8 / φ8 | 6 | 25W | 3.7 / 5.0 | |||||
| 1009 | 1.0 | 150.0 | 9.0 | 200 | 5×8 / φ8 | 6 | 30W | 5.2 / 7.0 | |||||
| 0414 | 0.4 | 225.0 | 13.5 | 200 | 5×8 / φ8 | 3 | 25W | 3.7 / 5.0 | |||||
| 0715 | 0.7 | 241.0 | 14.5 | 200 | 5×8 / φ8 | 4 | 30W | 5.2 / 7.0 | |||||
| 0220 | 0.2 | 328.0 | 19.7 | 200 | 9×12 / φ12 | 2 | 25W | 3.7 / 5.0 | |||||
| 0424 | 0.4 | 400.0 | 24.0 | 200 | 9×12 / φ12 | 3 | 30W | 5.2 / 7.0 | |||||
| 0245 | 0.2 | 750.0 | 45.0 | 200 | 9×12 / φ12 | 2 | 30W | 5.2 / 7.0 | |||||
| For high pressure | 2002 | 2.0 | 34.0 | 2.05 | 200 | – / φ6 | 6 | 25W | 3.7 / 5.0 | ||||
| 2504 | 2.5 | 63.0 | 3.8 | 200 | – / φ6 | 6 | 30W | 5.2 / 7.0 | |||||
